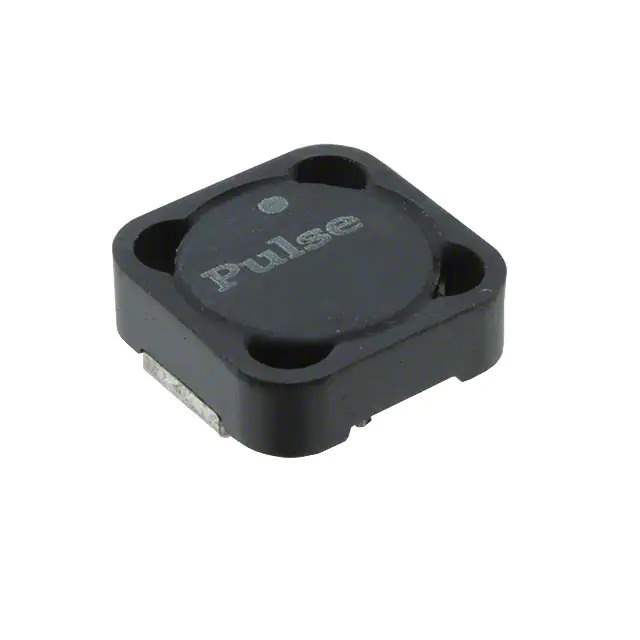

Same model may have multiple batches, images only for reference.

P1168.682NLT

Name: P1168.682NLT
Brand: Pulse
SKU: 888295
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P1168.682NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 6.8UH 4.6A 22 MOHM SMD / 6.8 μH Shielded Wirewound Inductor 4.6 A 22mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	P1168NL
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	6.8 µH
Tolerance	±30%
Current Rating (Amps)	4.6 A
Current - Saturation (Isat)	5.2A
Shielding	Shielded
DC Resistance (DCR)	22mOhm Max
Frequency - Self Resonant	27MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)	0.177" (4.50mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	888295-P1168.682NLT
Ultra Librarian 3D Model	Ultra Librarian P1168.682NLT CAD Model

Alternative Products

Description

The 888295-P1168.682NLT is a wirewound fixed inductor from the P1168NL series by Pulse.

Series: P1168NL
Shielding: Shielded
Size: 0.482" L x 0.482" W (12.24mm x 12.24mm)
Inductance: 6.8μH
Seated Height: 0.177" (4.50mm)
Packaging: Tape & reel
Standard Package: 500 pcs
Tolerance: ±30%
Operating Temperature: -40°C to 130°C
Current Rating: 4.6A
