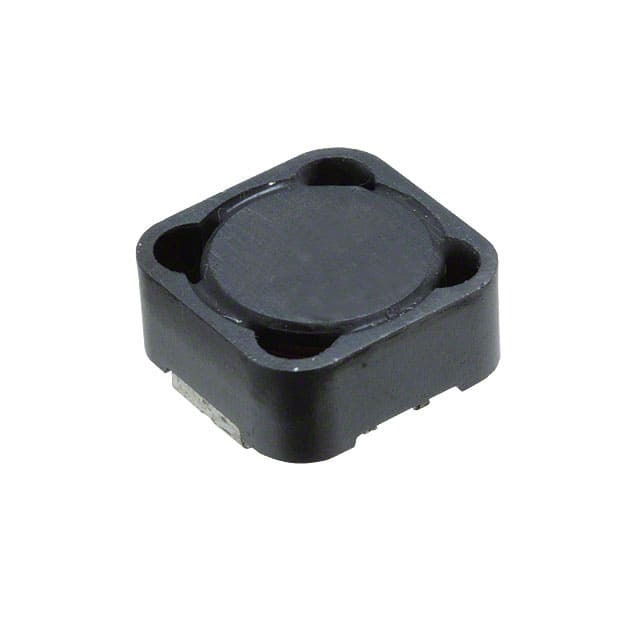

Same model may have multiple batches, images only for reference.

P1171.392NLT

Name: P1171.392NLT
Brand: Pulse
SKU: 929793
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P1171.392NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 3.9UH 7A 10 MOHM SMD / 3.9 μH Shielded Wirewound Inductor 7 A 10mOhm Max Nonstandard
Datasheet	P1171.392NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	P1171NL
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	3.9 µH
Tolerance	±30%
Current Rating (Amps)	7 A
Current - Saturation (Isat)	7A
Shielding	Shielded
DC Resistance (DCR)	10mOhm Max
Frequency - Self Resonant	34MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)	0.236" (6.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	929793-P1171.392NLT
Ultra Librarian 3D Model	Ultra Librarian P1171.392NLT CAD Model

Alternative Products

Description

The 929793-P1171.392NLT is a fixed inductor from Pulse.

Series: P1171NL
Inductance: 3.9 µH
Shielded: yes
Package: tape & reel
Size: 0.482" L x 0.482" W (12.24mm x 12.24mm)
Temperature Range: -40°C to 130°C
Current Rating: 7A
DC Resistance (DCR): 10mOhm max
Tolerance: ±30%
Category: Inductors, Coils, Chokes - Fixed Inductors
Status: active
