Same model may have multiple batches, images only for reference.

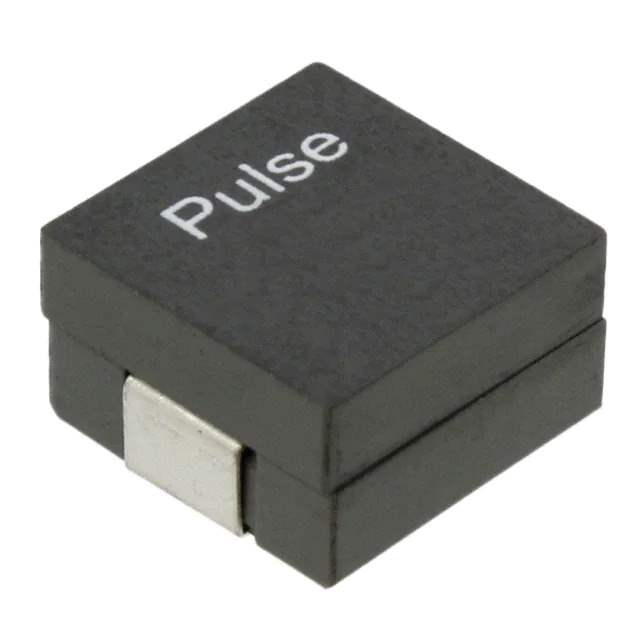

PA0513.441NLT Real Image
Same model may have multiple batches, images only for reference.

PA0513.441NLT

Part No PA0513.441NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 440NH 30A 0.32MOHM SMD
Datasheet
PA0513.441NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PA0513NL
Package Tape & Reel
Product Status Active
Inductance 440 nH
Tolerance ±20%
Current Rating (Amps) 30 A
Current - Saturation (Isat) 35A
Shielding Shielded
DC Resistance (DCR) 0.32mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.530" L x 0.510" W (13.46mm x 12.95mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 652323-PA0513.441NLT
Ultra Librarian 3D Model Ultra Librarian PA0513.441NLT CAD Model

Description

The 652323-PA0513.441NLT is a fixed inductor with a size of 0.530" L x 0.510" W (13.46mm x 12.95mm).

  • Category: Inductors, Coils, Chokes - Fixed Inductors
  • Series: PA0513NL
  • Shielded: Yes
  • Package: Tape & reel
  • Inductance: 440nH
  • Height: 0.315" (8.00mm)
  • Standard Package: 400 pieces
  • Tolerance: ±20%
  • DC Resistance (DCR): 0.32mOhm
  • Current Rating: 30A
  • Operating Temperature Range: -40°C to 130°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Status: Active
  • Manufacturer: Pulse
