Same model may have multiple batches, images only for reference.

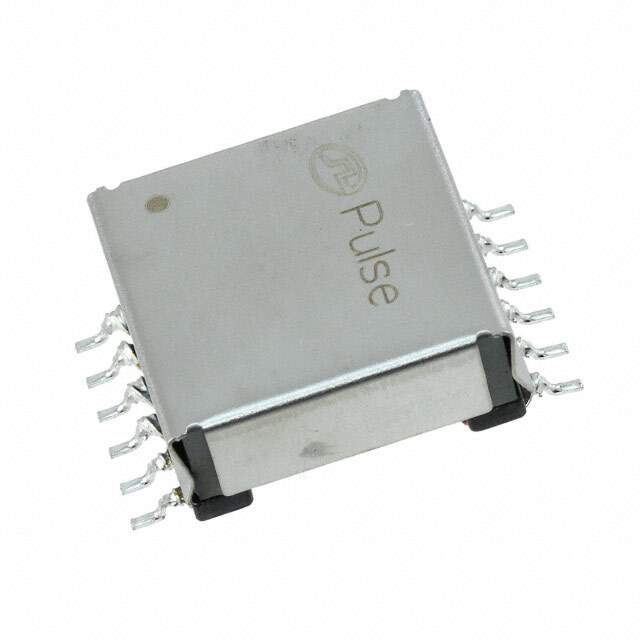

PA1558NLT Real Image
Same model may have multiple batches, images only for reference.

PA1558NLT

Part No PA1558NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFMR FLYBACK EFD20 SM / Switching Transformer, High Frequency
Datasheet
PA1558NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Series *
Packaging Reel package
Mounting SMD
Dimension 0.860" L x 1.150" W (21.84mm x 29.21mm)
Height - Seated (Maximum) 0.450" (11.43mm)
Win Source Part Number 791340-PA1558NLT
Popularity Medium
Supply and Demand Status Limited
Family Name PA
Introduction Date March 20, 2008
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian PA1558NLT CAD Model

Description

The Pulse Electronics Corporation PA1558NLT transformer is a surface-mount device (SMD) that is used in a variety of electronic applications.

  • Series: PA
  • Packaging: Reel
  • Dimension: 0.860" L x 1.150" W (21.84mm x 29.21mm)
  • Seated Height: 0.450" (11.43mm)
  • Introduction Date: March 20, 2008
  • Estimated EOL Date: 2028
  • Compliance: ECCN EAR99
  • Popularity: Medium
