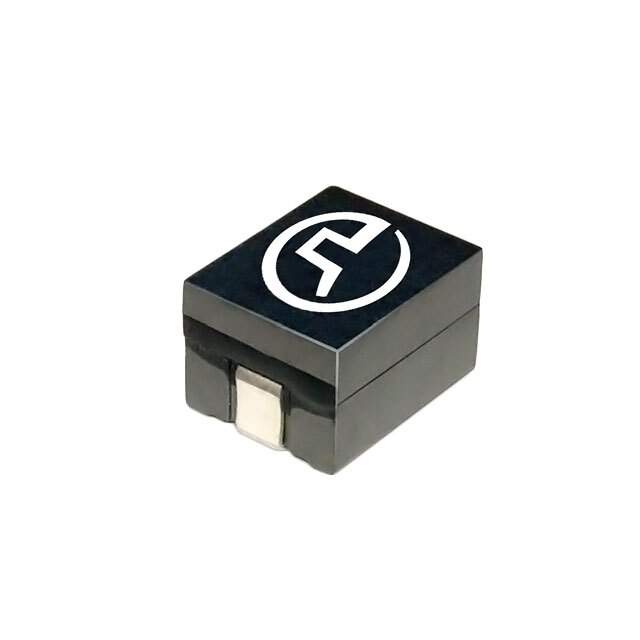

PA2202.321NL Real Image
Same model may have multiple batches, images only for reference.

PA2202.321NL

Part No PA2202.321NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 325NH 36A 0.48MOHM SMD / 325 nH Unshielded Inductor 36 A 0.48mOhm Nonstandard
Datasheet
PA2202.321NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Pulse Electronics
Packaging Tray
Inductance 325 nH
Tolerance ±15%
Current Rating (Amps) 36 A
Current - Saturation (Isat) 34A
Shielding Unshielded
DC Resistance (DCR) 0.48mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.476" L x 0.394" W (12.10mm x 10.00mm)
Height - Seated (Max) 0.236" (6.00mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 553-2932,-PA2202.321NL
Standard Package 75
Win Source Part Number 1327609-PA2202.321NL
Ultra Librarian 3D Model Ultra Librarian PA2202.321NL CAD Model

Description

Pulse Electronics manufactures the PA2202.321NL, a fixed inductor with a category of Inductors, Coils, Chokes.

  • Packaging: Tray
  • Shielded: No
  • Size/Dimension: 0.476" L x 0.394" W (12.10mm x 10.00mm)
  • Inductance: 325 nH
  • Height-Seated (max): 0.236" (6.00mm)
  • Standard Package: 75 pieces
  • Mounting: Surface
  • Tolerance: ±15%
  • DC Resistance (DCR): 0.48mOhm
  • Temperature Range: -40°C ~ 130°C
  • RoHS Compliant: Yes
  • Current Rating: 36 A
