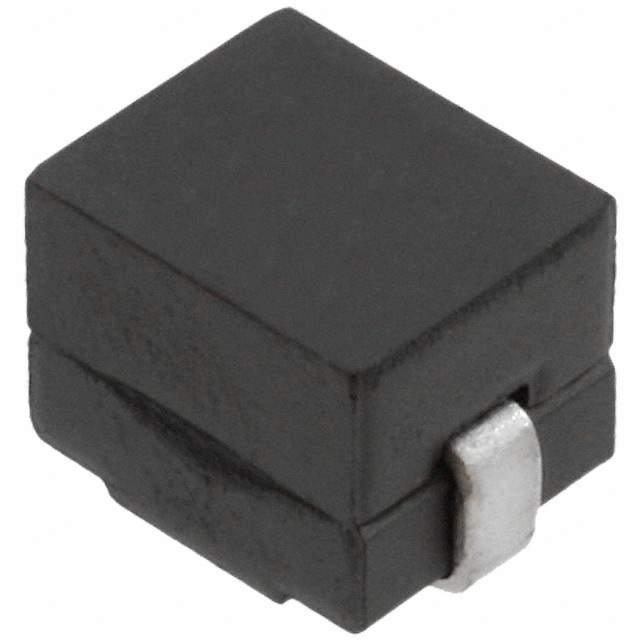

Same model may have multiple batches, images only for reference.

PA2607.121NLT

Name: PA2607.121NLT
Brand: Pulse
SKU: 791347
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA2607.121NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 115NH 41A 0.29 MOHM / Inductor Power Bead Wirewound 0.115uH 15% 100KHz 41A 0.00029Ohm DCR T/R
Datasheet	PA2607.121NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Series	PA2607NL
Packaging	Reel package
Inductance	115nH
Tolerance	±15%
Current Rating	41A
Current - Saturation	94A
Shielding	Shielded
DC Resistance (DCR)	0.29 mOhm
Operating Temperature Range	-40°C ~ 130°C
Mounting	SMD
Package	Nonstandard
Dimension	0.406" L x 0.301" W (10.31mm x 7.65mm)
Height - Seated (Maximum)	0.291" (7.40mm)
Win Source Part Number	791347-PA2607.121NLT
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PA2607NL
Introduction Date	October 01, 2008
ECCN	EAR99
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian PA2607.121NLT CAD Model

Alternative Products

Description

The Pulse Electronics Corporation 791347-PA2607.121NLT is a high-quality inductor designed for use in electronic circuits.

Shielding: Shielded
Current Rating: 41A
Inductance: 115nH
Mounting Style: SMD
Category: Inductor, Coil, Choke
Operating Temperature Range: -40°C to 130°C
Popularity: Medium
Supply and Demand Status: Limited
Package: Nonstandard
Maximum Seated Height: 0.291" (7.40mm)
Estimated EOL Date: 2027
