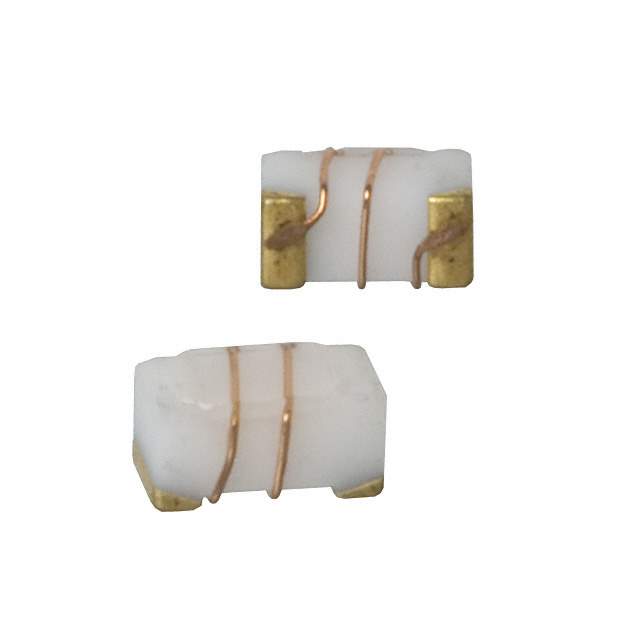

Same model may have multiple batches, images only for reference.

PE-0603CD010KTT

Name: PE-0603CD010KTT
Brand: Pulse
SKU: 1327540
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-0603CD010KTT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 1.7NH 700MA 50MOHM SMD / 1.7 nH Unshielded Drum Core, Wirewound Inductor 700 mA 50mOhm Max 0603 (1608 Metric)
Datasheet	PE-0603CD010KTT Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Reel - TR
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	1.7 nH
Tolerance	±10%
Current Rating (Amps)	700 mA
Shielding	Unshielded
DC Resistance (DCR)	50mOhm Max
Q @ Freq	16 @ 250MHz
Frequency - Self Resonant	6GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	Surface Mount
Case / Package	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.071" L x 0.049" W (1.80mm x 1.24mm)
Height - Seated (Max)	0.040" (1.02mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	2,000
Win Source Part Number	1327540-PE-0603CD010KTT
Ultra Librarian 3D Model	Ultra Librarian PE-0603CD010KTT CAD Model

Alternative Products

Description

This is a fixed inductor that is designed for use in electronic circuits.

Packaging: reel-TR
Type: drum core, wirewound
Shielding: unshielded
Size/Dimension: 0.071" L x 0.049" W (1.80mm x 1.24mm)
Inductance: 1.7 nH
Height - Seated (Max): 0.040" (1.02mm)
Standard Package: 2,000
Mounting Type: through hole
Tolerance: ±10%
Core Material: ceramic
Q @ Freq: 16 @ 250MHz
Frequency - Self Resonant: 6GHz
DC Resistance (DCR): 50mOhm Max
Supplier Device Package: 0603 (1608 Metric)
Operating Temperature: -40°C ~ 125°C
Case/Package: 0603 (1608 Metric)
Current Rating (Amps): 700 mA
Inductance Frequency - Test: 250 MHz
HTSUS: 8504.50.8000
Product Status: obsolete
Current - Saturation (Isat): -
Moisture Sensitivity Level (MSL): 1 (Unlimited)
