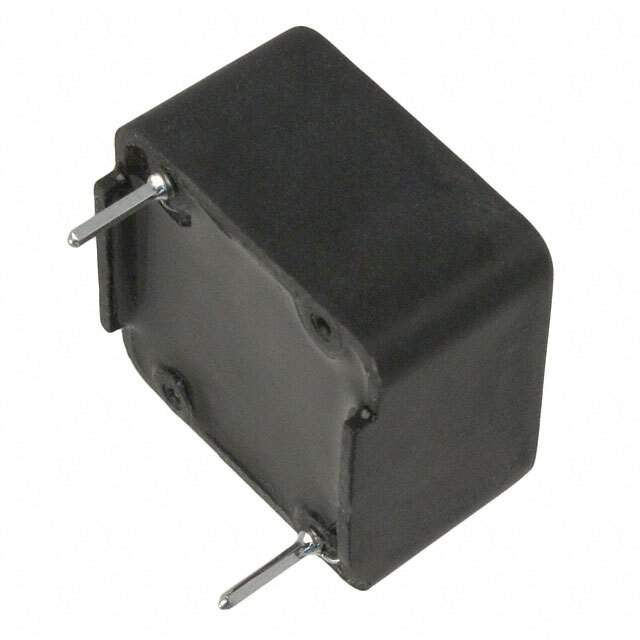

Same model may have multiple batches, images only for reference.

PE-52629NL

Name: PE-52629NL
Brand: Pulse
SKU: 812429
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-52629NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 680UH 850MA 1.5 OHM TH / STANDARD LOW POWER INDUCTORS Switch Mode Power Converters & Ripple Filters
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Pulse Electronics Power
Packaging	Tube
Type	Toroidal
Inductance	680μH
Tolerance	±20%
Current Rating (Amps)	850mA
Shielding	Unshielded
DC Resistance (DCR)	1.5Ohm Max
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	20kHz
Mounting Style	Through Hole
Manufacturer Package	Radial, Horizontal - Corner Terminals
Dimension	0.710" L x 0.710" W (18.03mm x 18.03mm)
Height - Seated (Maximum)	0.460" (11.68mm)
Manufacturer Pack Quantity	25
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	812432-PE-52629NL
Ultra Librarian 3D Model	Ultra Librarian PE-52629NL CAD Model

Alternative Products

Description

The Pulse Electronics Power 812432-PE-52629NL component is a toroidal type inductor.

Type: Toroidal
Packaging: Tube
Status: Limited
Temperature Range: -40°C to 130°C
Maximum Seated Height: 0.460" (11.68mm)
Dimension: 0.710" L x 0.710" W (18.03mm x 18.03mm)
Inductance: 680μH
DC Resistance: 1.5Ohm Max
