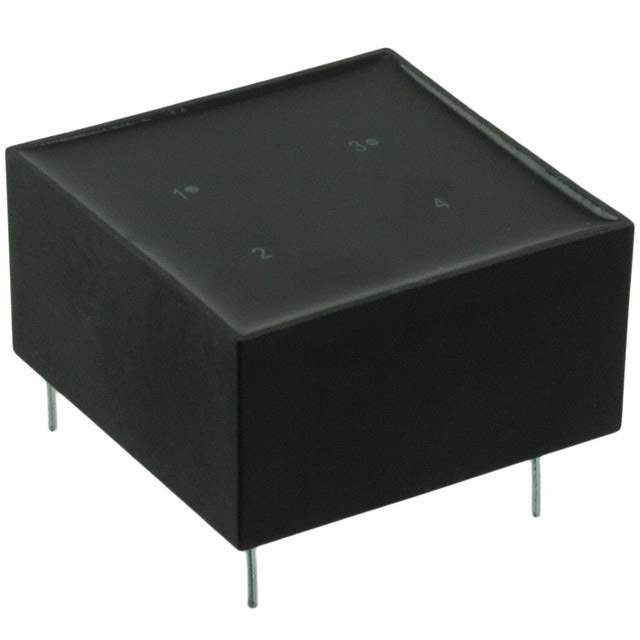

PE-62896NL Real Image
Same model may have multiple batches, images only for reference.

PE-62896NL

Part No PE-62896NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 4MH 5.2A 2LN TH
Datasheet
PE-62896NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Number of Lines 2
Inductance @ Frequency 4mH @ 1kHz
Current Rating (Max) 5.2A
DC Resistance (DCR) (Max) 40 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Height (Max) 0.810" (20.57mm)
Dimension Horizontal, 4 PC Pin
Win Source Part Number 209755-PE-62896NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-62896NL CAD Model

Description

The 209755-PE-62896NL is an active component manufactured by Pulse Electronics Corporation.

  • Manufacturer: Pulse Electronics Corporation
  • Part Number: 209755-PE-62896NL
  • Status: Active
  • Mounting Type: Through-hole
  • Height (Max): 0.810" (20.57mm)
  • Current Rating: 5.2A
  • DC Resistance (DCR) (Max): 40 mOhm
  • Inductance @ Frequency: 4mH @ 1kHz
  • Application: Filters
  • Lines: 2
  • Supply and Demand Status: Limited
