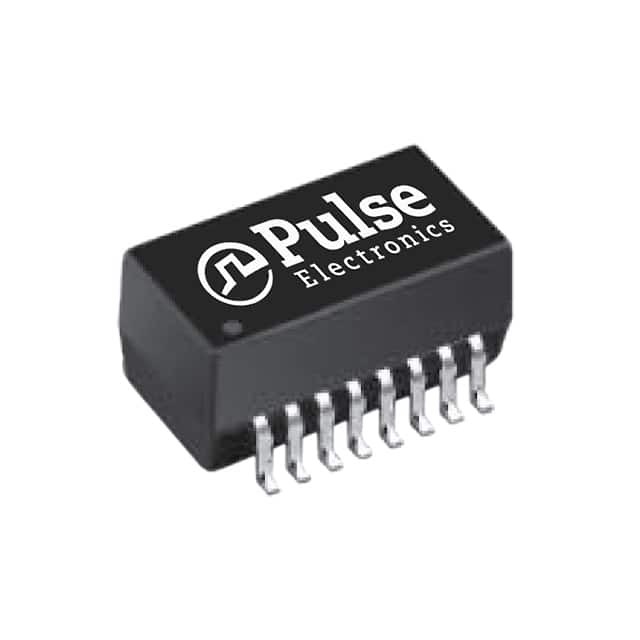

Same model may have multiple batches, images only for reference.
PE-65870NLT
Same model may have multiple batches, images only for reference.

PE-65870NLT

Part No PE-65870NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR 1CT:1.15CT/1CT:1.15CT SMD
Datasheet
PE-65870NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type T1/E1 (Dual)
Inductance 1.2mH, 1.2mH
Mounting Type Surface Mount
Size / Dimension 0.505" L x 0.280" W (12.83mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.14 oz (3.99 g)
Standard Package 600 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 846309-PE-65870NLT
Ultra Librarian 3D Model Ultra Librarian PE-65870NLT CAD Model

Description

The 846309-PE-65870NLT is a pulse transformer designed for use in transformers.

  • Package: Tape and Reel
  • Size / Dimension: 0.505" L x 0.280" W (12.83mm x 7.11mm)
  • Transformer Type: T1/E1 (Dual)
  • Inductance: 1.2mH, 1.2mH
  • Standard Package Quantity: 600 pieces
  • Weight: 0.14 oz (3.99 g)
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C to 70°C
  • ECCN Status: EAR99
  • REACH Status: Unaffected
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
