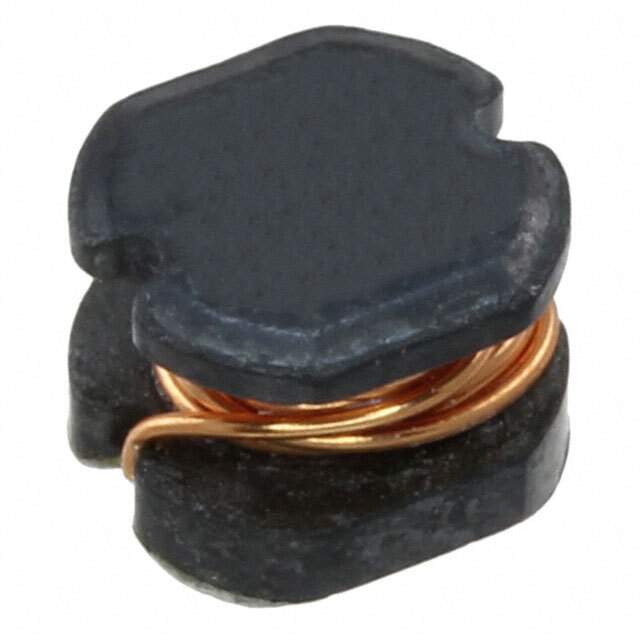

PF0580.153NLT

Name: PF0580.153NLT
Brand: Pulse
SKU: 1131076
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PF0580.153NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 15UH 850MA 197MOHM SMD / 15 µH Unshielded Wirewound Inductor 850 mA 197mOhm Max Nonstandard
Datasheet	PF0580.153NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PF0580NL
Package	Tape & Reel (TR)
Type	Wirewound
Inductance	15 µH
Tolerance	±15%
Current Rating (Amps)	850 mA
Current - Saturation (Isat)	850mA
Shielding	Unshielded
DC Resistance (DCR)	197mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.185" L x 0.165" W (4.70mm x 4.20mm)
Height - Seated (Max)	0.137" (3.48mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	1,950
Win Source Part Number	1131076-PF0580.153NLT
Ultra Librarian 3D Model	Ultra Librarian PF0580.153NLT CAD Model

Alternative Products

Description

The Pulse electronic component is a fixed inductor of the PF0580NL series.

Series: PF0580NL
Type: Fixed inductor
Winding: Wirewound
Shielding: Unshielded
Inductance: 15μH
Height Seated (max): 0.137" (3.48mm)
Standard Package: 1,950
Mounting: SMD (SMT)
Tolerance: ±15%
Material-Core: Not available
Q @ Freq: Not available
Frequency-Self Resonant: Not available
Package/Case: Nonstandard
DC Resistance (DCR): 197mOhm Max
Supplier Device Package: Not available
Operating Temperature: -40°C to 125°C
Dimension: 0.185" L x 0.165" W (4.70mm x 4.20mm)
MSL Level: 1 (unlimited)
Current Rating (amps): 850 mA
REACH Status: REACH unaffected
HTSUS: 8504.50.4000
