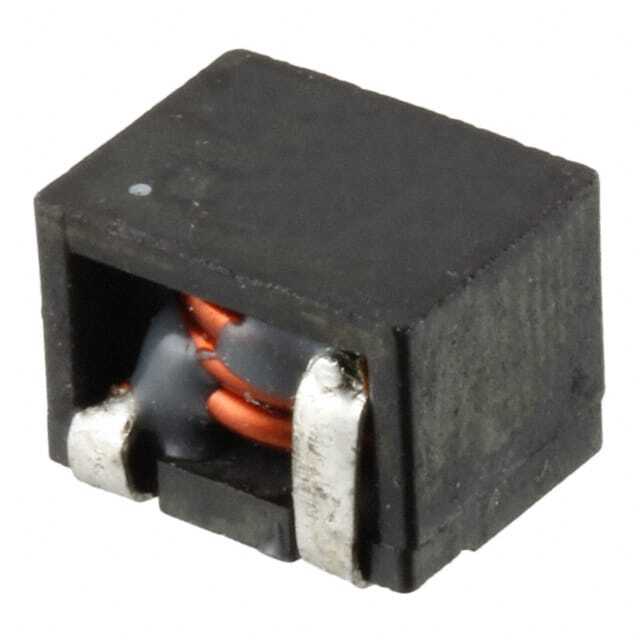

Same model may have multiple batches, images only for reference.

PG0702.472NLT

Name: PG0702.472NLT
Brand: Pulse
SKU: 930315
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PG0702.472NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 8.4A 5.3MOHM SMD / 4.7 μH Shielded Wirewound Inductor 8.4 A 5.3mOhm Nonstandard
Datasheet	PG0702.472NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	PG0702NL
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	8.4 A
Current - Saturation (Isat)	8.4A
Shielding	Shielded
DC Resistance (DCR)	5.3mOhm
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.425" L x 0.362" W (10.80mm x 9.20mm)
Height - Seated (Max)	0.315" (8.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	930315-PG0702.472NLT
Ultra Librarian 3D Model	Ultra Librarian PG0702.472NLT CAD Model

Alternative Products

Description

The 930315-PG0702.472NLT is a fixed inductor from Pulse.

Series: PG0702NL
Size: 0.425" L x 0.362" W (10.80mm x 9.20mm)
Type: Shielded
Inductance: 4.7 μH
Tolerance: ±20%
DC Resistance (DCR): 5.3mOhm
Current Rating: 8.4 A
Operating Temperature Range: -40°C to 130°C
Mounting: Surface Mount
Package: Nonstandard
