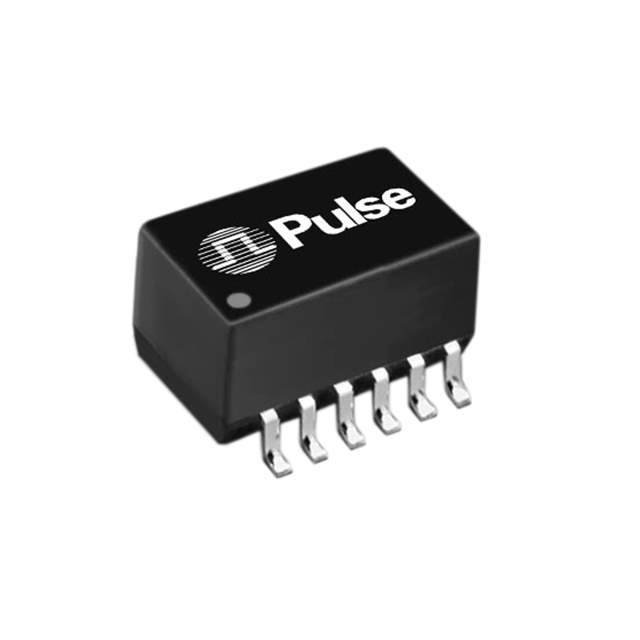

T7015NLT Real Image
Same model may have multiple batches, images only for reference.

T7015NLT

Part No T7015NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR 64KBPS 1:2CT/1:2CT 20MH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tape and Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 20mH
Mounting Style SMD
Parts Dimension 0.675" L x 0.456" W (17.15mm x 11.58mm)
Height - Seated (Maximum) 0.340" (8.64mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.14 oz (3.99 g)
Manufacturer Pack Quantity 250
MSL Level 3 (168 Hours)
Win Source Part Number 727434-T7015NLT
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T7015NLT CAD Model

Description

The Pulse Electronics Network 727434-T7015NLT is an encapsulated isolation and data interface SMD transformer type inductor with an inductance of 20mH.

  • Temperature Range: 0°C to 70°C
  • Height: 0.340" (8.64mm)
  • Package: Tape and Reel
  • Parts Dimension: 0.675" L x 0.456" W (17.15mm x 11.58mm)
  • Weight: 0.14 oz (3.99 g)
