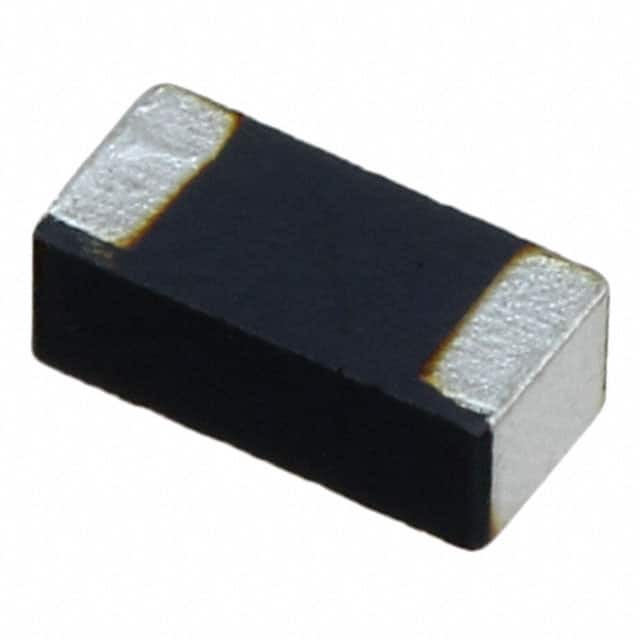

Same model may have multiple batches, images only for reference.
W3008G
Same model may have multiple batches, images only for reference.

W3008G

Part No W3008G
Manufacturer Pulse
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / 2.4GHz Bluetooth Chip RF Antenna 2.4GHz ~ 2.483GHz 1.7dBi Solder Surface Mount
Datasheet
W3008G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Pulse
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.483GHz
Antenna Type Chip
Number of Bands 1
Return Loss -8dB
Gain 1.7dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Applications BlueTooth
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 903188-W3008G
Ultra Librarian 3D Model Ultra Librarian W3008G CAD Model

Description

The 903188-W3008G is a chip-type RF antenna designed for Bluetooth applications.

  • Application: Bluetooth
  • Frequency Range: 2.4GHz to 2.483GHz
  • Gain: 1.7dBi
  • Return Loss: -8dB
  • Mounting Type: Surface Mountable
  • Packaging: Tape & Reel
  • Standard Package Quantity: 3,000 pcs
  • Height: 0.043" (1.10mm)
  • Frequency Group: UHF (2GHz to 3GHz)
  • REACH: Unaffected
  • ECCN: EAR99
  • Manufacturer: Pulse
  • Product Line: RF and Wireless
  • Product Status: Active
