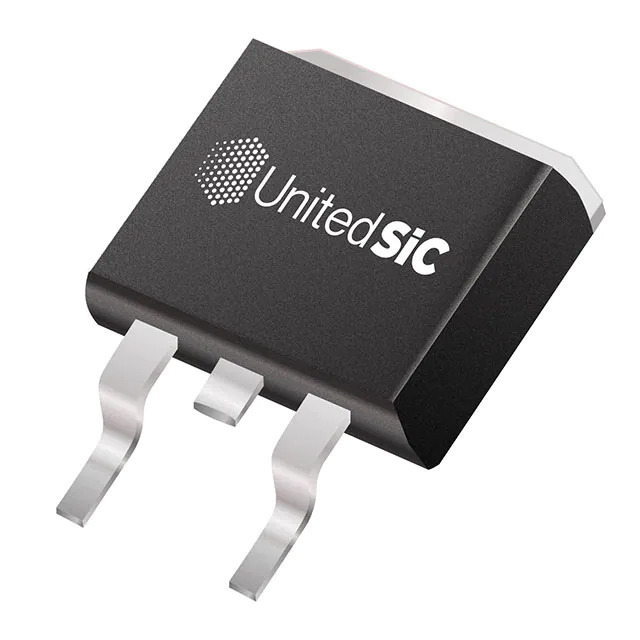

Same model may have multiple batches, images only for reference.

UJ3C065030B3

Name: UJ3C065030B3
Brand: Qorvo US Inc.
SKU: 1353434
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UJ3C065030B3
Manufacturer	Qorvo US Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 650V 65A TO263 / N-Channel 650 V 65A (Tc) 242W (Tc) Surface Mount TO-263 (D2Pak)
Datasheet	UJ3C065030B3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Qorvo
Series	-
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	65A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	12V
Rds On (Max) @ Id, Vgs	35mOhm @ 50A, 12V
Vgs(th) (Max) @ Id	6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	51 nC @ 15 V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1500 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	242W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (D2Pak)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Base Product Number	UJ3C065030
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1353434-UJ3C065030B3
Ultra Librarian 3D Model	Ultra Librarian UJ3C065030B3 CAD Model

Alternative Products

Description

The UJ3C065030B3 is a single N-channel MOSFET manufactured by Qorvo.

Category: Transistors, FETs, MOSFETs, Single
Operating Temperature: -55°C to 175°C
Voltage - Drain to Source (Vdss): 650V
Continuous Drain Current (Id) @ 25°C: 65A
Gate Threshold Voltage (Vgs(th)) @ Id: 6V (max) @ 10mA
Package: TO-263-3, D²Pak
Mounting Type: Surface Mount
Product Status: Active
REACH: Unaffected
