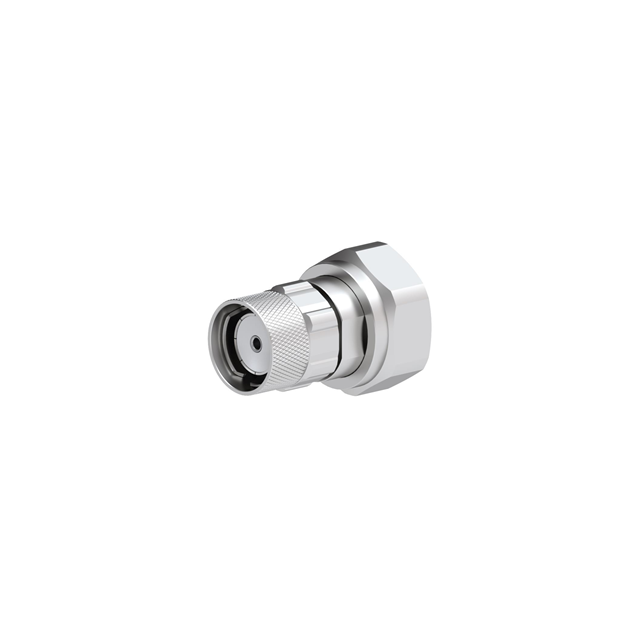

R191663000 Real Image
Same model may have multiple batches, images only for reference.

R191663000

Part No R191663000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF) - Adapters
Description QLI FEMALE -7/16 MALE STRAIGHT A  /  Adapter Coaxial Connector QLI Jack, Female Socket To 7/16 Plug, Male Pin 50Ohm
Datasheet
R191663000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Radiall USA, Inc.
Package Bulk
Adapter Type Plug to Jack
Conversion Type Between Series
Adapter Series QLI to 7/16
Center Gender Female to Male
Convert From (Adapter End) QLI Jack, Female Socket
Convert To (Adapter End) 7/16 Plug, Male Pin
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock, Threaded
Frequency - Max 6 GHz
Center Contact Plating Silver
Body Material Brass
Body Finish White Bronze
Center Contact Material Bronze
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 100
Temperature Range - Operating -55°C ~ 120°C
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2201-R191663000,R191.663.000
Standard Package 10
Win Source Part Number 1221042-R191663000
Ultra Librarian 3D Model Ultra Librarian R191663000 CAD Model

Description

The QLI Jack to 7/16 Plug Adapter is a high-quality connector designed for use in coaxial connections.

  • Manufacturer: QLI
  • Type: Adapter
  • Connector Type: Jack to Plug
  • Connection Type: Coaxial
  • Locking: Bayonet Lock
  • Fastening Type: Threaded
  • Body Material: Brass
  • Body Finish: White Bronze
  • Center Contact Material: Bronze
  • Center Contact Plating: Silver
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Frequency Range: Up to 6 GHz
  • Impedance: 50Ohm
  • Style: Straight
  • Mounting: Free Hanging (In-Line)
