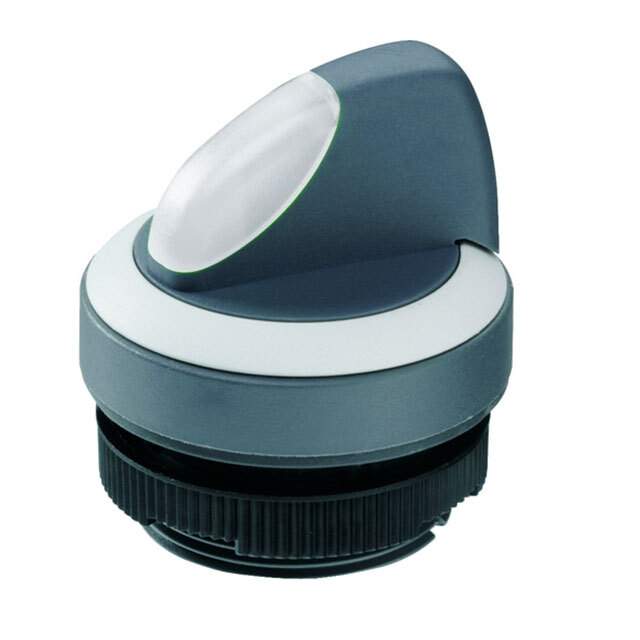

1.30.272.202/2200 Real Image
Same model may have multiple batches, images only for reference.

1.30.272.202/2200

Part No 1.30.272.202/2200
Manufacturer RAFI USA
Catalog Configurable Switch Components - Body
Description CONFIG SW BODY SELECTOR ILLUM / Configurable Switch Body Selector Illuminated
Datasheet
1.30.272.202/2200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Configurable Switch Components - Body
Mfr RAFI USA
Series RAFIX 22 FS
Package Bulk
Requires Contact Block(s), Illumination Source
Type Maintained
Illumination Illuminated
Actuator Type Selector
(Select First, Then Apply Filters) Compatible Series Rafix 22 FS
Panel Cutout Dimensions 22.3mm (Round)
Base Product Number 1.30.272
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9025
Other Names 1.30.272.202/2201,1.30272.2022200
Standard Package 10
Win Source Part Number 1144355-1.30.272.202/2200
Ultra Librarian 3D Model Ultra Librarian 1.30.272.202/2200 CAD Model

Description

The electronic component with Id 1020783 is a configurable switch component body product from RAFI USA.

  • Type: Maintained
  • Actuator Type: Selector
  • Illumination: Yes
  • Requires: Contact Block(s) and Illumination Source
  • Compatible with: Rafix 22 FS series
  • Panel Cutout: 22.3mm (Round)
  • Package Type: Bulk
  • Standard Package: 10
