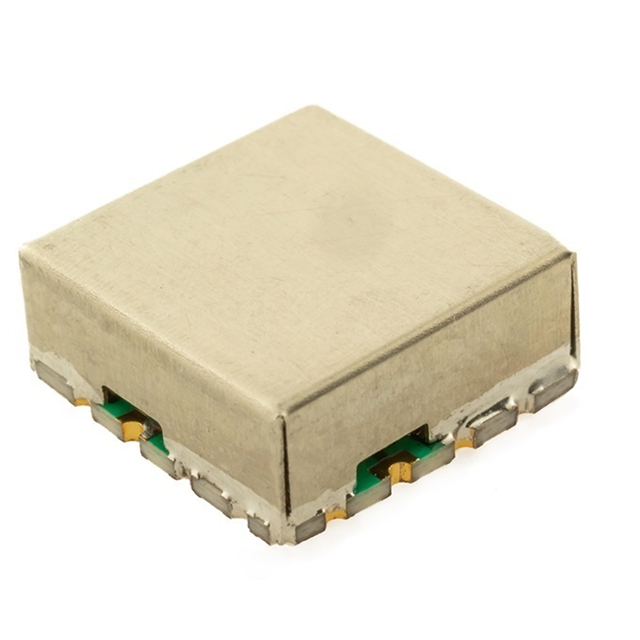

RQRA-1000-2000 Real Image
Same model may have multiple batches, images only for reference.

RQRA-1000-2000

Part No RQRA-1000-2000
Manufacturer Raltron Electronics Corporation
Catalog VCOs (Voltage Controlled Oscillators)
Description VCO 1000MHZ-2000MHZ SMD .5X.5" / 1.5GHz Center Frequency 1 V ~ 20 V Voltage Controlled Oscillator 9 ±3 dBm -10 2nd Harmonic Typ (dBc)
Datasheet
RQRA-1000-2000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - VCOs (Voltage Controlled Oscillators)
Mfr Raltron Electronics
Series RQRA VCO
Package Strip
Frequency Range 1 ~ 2GHz
Frequency - Center 1.5GHz
Voltage - Supply 10V
Tuning Voltage (VDC) 1 V ~ 20 V
2nd Harmonic, Typ (dBc) -10
Icc Max 25mA
Pushing (MHz/V) 2.5
Power (dBm) 9 ±3
Phase Noise Typ (dBc/Hz) -95
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-QFN, Variant
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height 0.162" (4.11mm)
Standard Package 5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1350831-RQRA-1000-2000
Ultra Librarian 3D Model Ultra Librarian RQRA-1000-2000 CAD Model

Description

The RQRA-1000-2000 is a voltage-controlled oscillator (VCO) manufactured by Raltron Electronics.

  • Series: RQRA
  • Packaging: Strip
  • Size / Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Standard Package: 5
  • Frequency: 1 ~ 2GHz
  • Center Frequency: 1.5GHz
  • Tuning Voltage (VDC): 1 V ~ 20 V
  • 2nd Harmonic, typ (dBc): -10
  • Icc Max: 25mA
  • Power (dBm): 9 ±3
  • Phase Noise typ (dBc/Hz): -95
  • Voltage - Supply: 10V
  • Package / Case: 16-QFN, Variant
  • Operating Temperature: -40°C ~ 85°C
  • Pushing (MHz/V): 2.5
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
