Same model may have multiple batches, images only for reference.

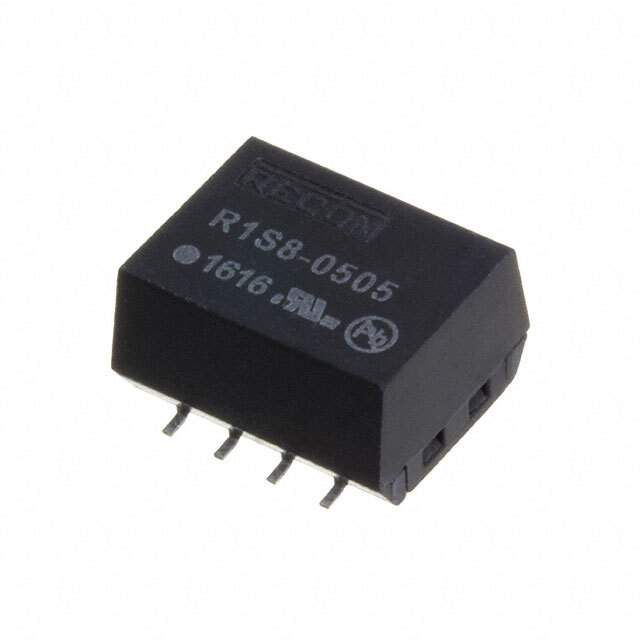

R1S8-0505 Real Image
Same model may have multiple batches, images only for reference.

R1S8-0505

Part No R1S8-0505
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 1W  /  Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
R1S8-0505 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE R1S (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 78%
Mounting SMD (SMT)
Package / Case 8-SMD Module
Dimension 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 945-3305,R1S80505,R1S8-0505-ND,10014256
Standard Package 40
Win Source Part Number 1017677-R1S8-0505
Ultra Librarian 3D Model Ultra Librarian R1S8-0505 CAD Model

Description

The Recom Power ECONOLINE R1S (1W) series DC-DC converter is an isolated module with a single output of 5V and a current rating of 200mA.

  • Output: 5V
  • Current Rating: 200mA
  • SCP: Yes
  • Voltage Isolation: 1kV
  • Package: 8-SMD Module
  • Applications: ITE (Commercial)
  • Efficiency: 78%
  • Temperature Range: -40°C to 100°C
  • Dimension: 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
  • ECCN: EAR99
  • REACH: Unaffected
