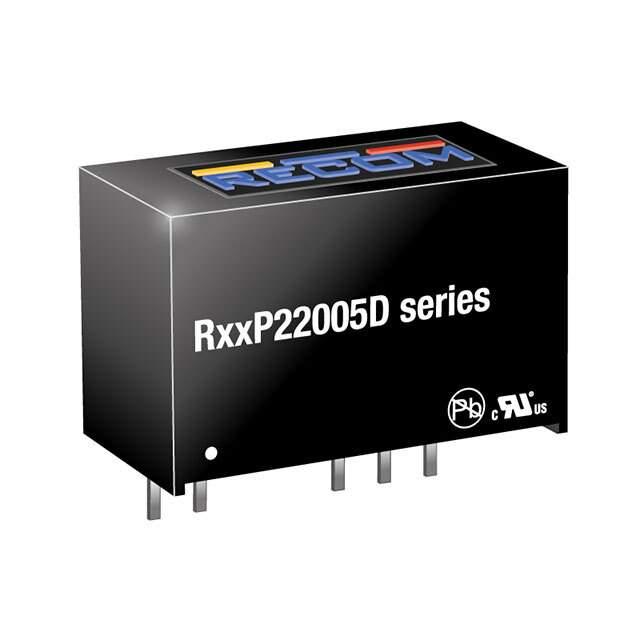

Same model may have multiple batches, images only for reference.

R24P22005D

Name: R24P22005D
Brand: Recom Power
SKU: 1337448
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	R24P22005D
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 20V -5V 2W / Isolated Module DC DC Converter 2 Output 20V -5V 50mA, 200mA 21.6V - 26.4V Input
Datasheet	R24P22005D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RxxP22005D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	20V
Voltage - Output 2	-5V
Current - Output (Max)	50mA, 200mA
Power (Watts)	2 W
Voltage - Isolation	5.2 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 95°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Base Product Number	R24P220
Standard Package	25
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1337448-R24P22005D
Ultra Librarian 3D Model	Ultra Librarian R24P22005D CAD Model

Alternative Products

Description

The ECONOLINE RxxP22005D (2W) is an isolated module DC-DC converter designed for use in ITE (Commercial) applications.

Power: 2W
Number of Outputs: 2
Current - Output 1: 50mA
Current - Output 2: 200mA
Voltage - Input: 21.6V ~ 26.4V
Voltage - Output 1: 20V
Voltage - Output 2: -5V
Efficiency: 84%
Mounting Type: Through Hole
Size / Dimension: 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Package / Case: 7-SIP Module, 5 Leads
