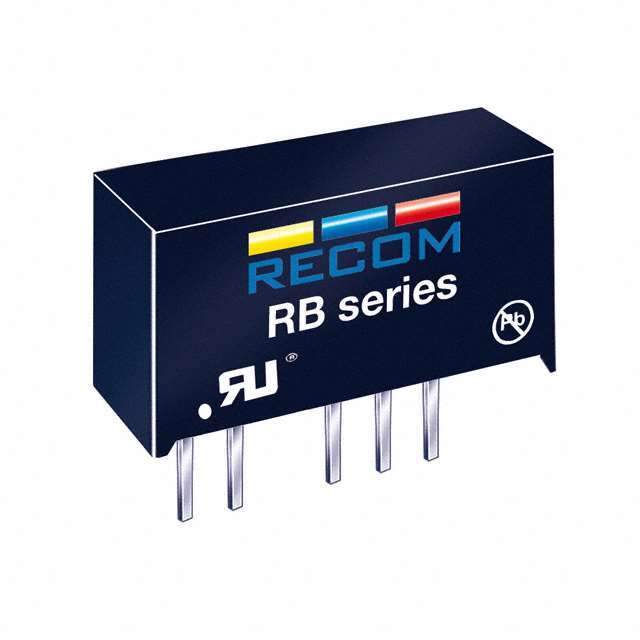

RB-3.305D/HP Real Image
Same model may have multiple batches, images only for reference.

RB-3.305D/HP

Part No RB-3.305D/HP
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 3V - 3.6V Input
Datasheet
RB-3.305D/HP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE RB (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 3V
Voltage - Input (Max) 3.6V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 2 kV
Applications ITE (Commercial), Medical
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Base Product Number RB-3.305
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 10005329,RB3.305D/HP
Standard Package 25
Win Source Part Number 1037955-RB-3.305D/HP
Ultra Librarian 3D Model Ultra Librarian RB-3.305D/HP CAD Model

Description

The Recom Power ECONOLINE RB (1W) is an isolated module DC-DC converter with 2 outputs, 100mA and 100mA, and 3V-3.6V input.

  • Outputs: 2 outputs, 100mA and 100mA
  • Input Voltage: 3V-3.6V
  • Package: 7-SIP module with 5 leads
  • Mounting: Through hole
  • Category: Power Supplies - Board Mount
  • ECCN: EAR99
  • Features: SCP
  • Applications: ITE (Commercial) and Medical applications
  • Voltage Isolation: 2kV
  • Efficiency: 78%
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
