Same model may have multiple batches, images only for reference.

RFM-0505S

Name: RFM-0505S
Brand: Recom Power
SKU: 848622
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RFM-0505S
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA - 5V Input
Datasheet	RFM-0505S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	RFM (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Max)	5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	79 ~ 84%
Mounting Type	Through Hole
Package / Case	4-SIP Module
Size / Dimension	0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm)
Base Product Number	RFM-0505
Standard Package	42 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	848622-RFM-0505S
Ultra Librarian 3D Model	Ultra Librarian RFM-0505S CAD Model

Alternative Products

Description

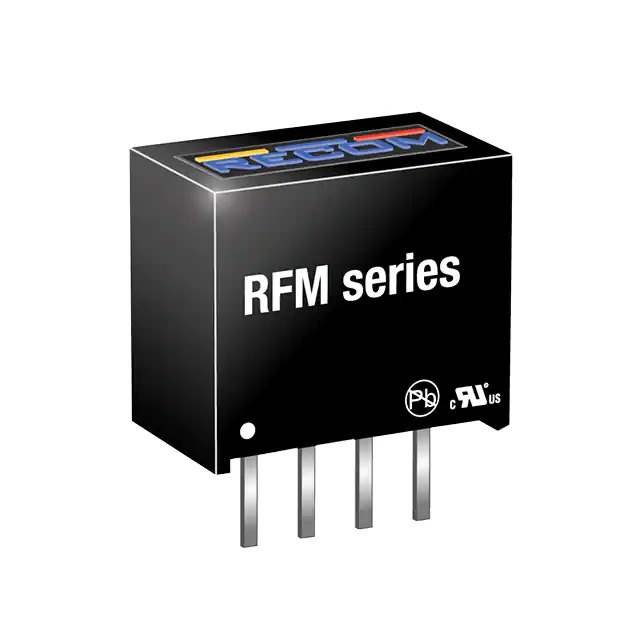

The RFM-0505S is a 1W isolated module DC-DC converter from the RFM series.

Series: RFM
Power: 1W
Output Type: Single
Output Current: 200mA (Max)
Input Voltage Range: Not Specified
Output Voltage: 5V
Size: 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm)
Mounting Type: Through-Hole
Application: ITE (Commercial)
Efficiency: 79% to 84%
Standard Package Quantity: 42 pcs
Features: Not specified
Product Status: Active
Manufacturer: Recom Power
Compliance: California Prop 65
Warning Label: Yes
