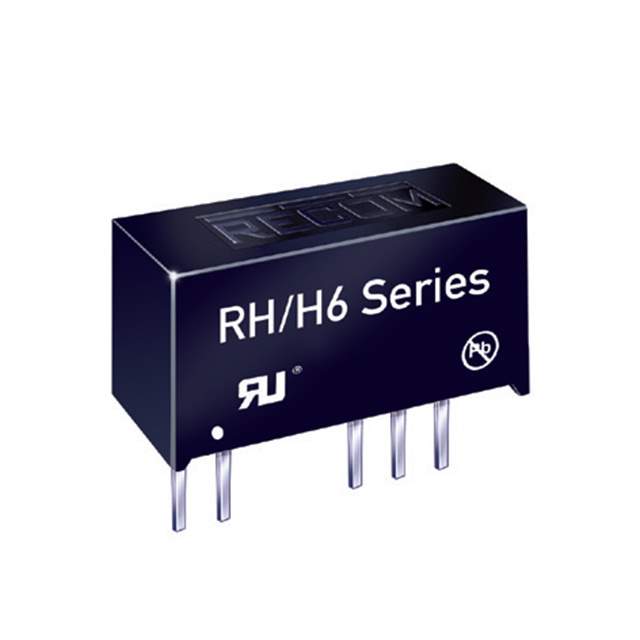

Same model may have multiple batches, images only for reference.

RH-1212D/H6

Get a Quote

Part No	RH-1212D/H6
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 10.8V - 13.2V Input
Datasheet	RH-1212D/H6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	6.4 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 90°C
Efficiency	80%
Mounting	Through Hole
Case / Package	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm)
Base Product Number	RH-1212
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	945-2434-5,10017936
Standard Package	25
Win Source Part Number	1335326-RH-1212D/H6
Ultra Librarian 3D Model	Ultra Librarian RH-1212D/H6 CAD Model

Alternative Products

Description

The RH-1212D/H6 isolated module DC-DC converter from Recom Power is a high-quality power supply for board mount applications.

Size: 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm)
Protection: SCP protection
Voltage Isolation: 6.4 kV
Power Rating: 1 W
Outputs: Two outputs of 12V and -12V
Current Output: 42mA for each output
Input Voltage Range: between 10.8V and 13.2V
Efficiency: 80%
Applications: ITE (Commercial) applications
Mounting: Through a hole
Package: 7-SIP module with 5 leads
Operating Temperature Range: -40°C to 90°C
Compliance: ROHS3 compliant
