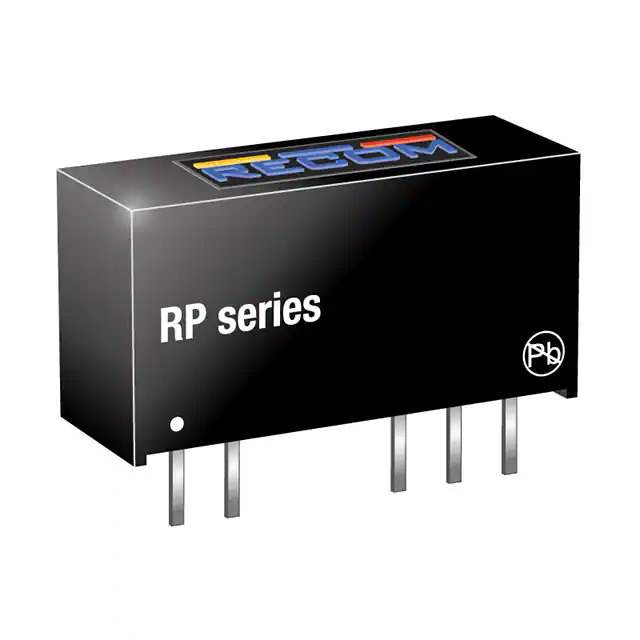

Same model may have multiple batches, images only for reference.

RP-2415D

Name: RP-2415D
Brand: Recom Power
SKU: 847873
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	RP-2415D
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 21.6V - 26.4V Input
Datasheet	RP-2415D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RP (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	33mA, 33mA
Power (Watts)	1 W
Voltage - Isolation	5.2 kV
Applications	ITE (Commercial), Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	82%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Base Product Number	RP-2415
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	847873-RP-2415D
Ultra Librarian 3D Model	Ultra Librarian RP-2415D CAD Model

Alternative Products

Description

The ECONOLINE RP (1W) series offers high-quality board mount DC DC converters, and the RP-2415D is a standout product in this series manufactured by Recom Power.

Power Rating: 1W.
Applications: ITE (Commercial) and Medical.
Outputs: Two outputs, with voltages of 15V and -15V respectively.
Voltage Isolation: 5.2 kV.
Protection: Short Circuit Protection (SCP).
Size: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm).
Efficiency: 82%.
Mounting Type: Through-hole.
Package: 7-SIP Module, 5 Leads.
