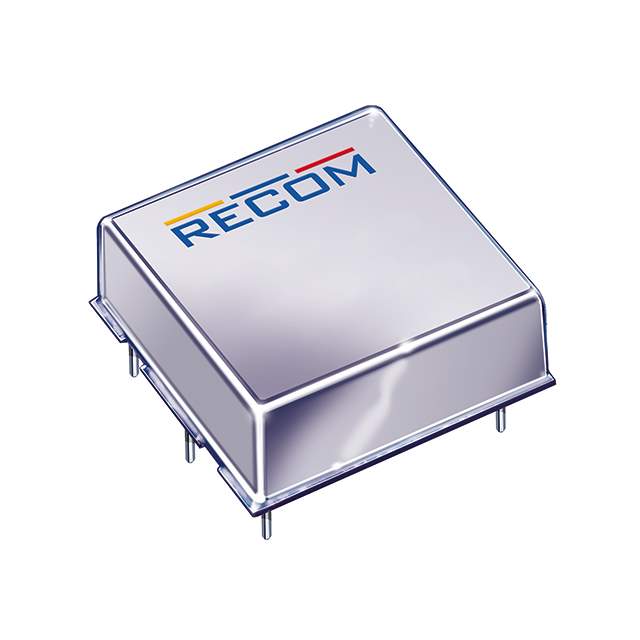

RP10-1212DA/N Real Image
Same model may have multiple batches, images only for reference.

RP10-1212DA/N

Part No RP10-1212DA/N
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 10W  /  Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 9V - 18V Input
Datasheet
RP10-1212DA/N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series POWERLINE RP10-A (10W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 416mA, 416mA
Power (Watts) 10 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 80°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Base Product Number RP10-1212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 30003937
Standard Package 8
Win Source Part Number 1166272-RP10-1212DA/N
Ultra Librarian 3D Model Ultra Librarian RP10-1212DA/N CAD Model

Description

The RP10-A (10W) series is an isolated module type DC-DC converter that comes with remote on/off, OCP, OVP, SCP, UVLO features and manufacturer is unknown.

  • Packaging: Tube
  • Applications: ITE (Commercial)
  • Power Rating: 10 W
  • Voltage-Isolation: 1.6 kV
  • Outputs: Two
  • Maximum Output Current: 416mA and 416mA, respectively
  • Input Voltage Range: From 9V to 18V
  • Output Voltage: 12V and -12V, respectively
  • Efficiency: 89%
  • Mounting Type: Through-Hole
  • Package/Case: 6-DIP Module
  • Operating Temperature Range: From -40°C to 80°C
