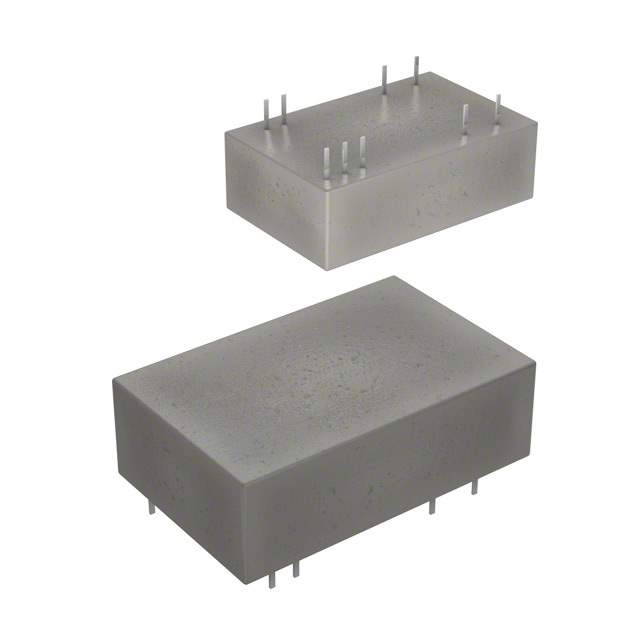

RP12-4812DAW Real Image
Same model may have multiple batches, images only for reference.

RP12-4812DAW

Part No RP12-4812DAW
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 12W  /  Isolated Module DC DC Converter 2 Output 12V -12V 500mA, 500mA 18V - 75V Input
Datasheet
RP12-4812DAW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series POWERLINE RP12-AW (12W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 500mA, 500mA
Power (Watts) 12 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 65°C
Efficiency 87%
Mounting Type Through Hole
Package / Case 24-DIP Module, 9 Leads
Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Control Features Enable, Active High
Base Product Number RP12-4812
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names RP124812DAW,945-2524,30000935,RP12-4812DAW-ND
Standard Package 7
Win Source Part Number 1191951-RP12-4812DAW
Ultra Librarian 3D Model Ultra Librarian RP12-4812DAW CAD Model

Description

The POWERLINE RP12-AW (12W) is a high-performance isolated module type DC-DC converter designed for use in ITE (Commercial) applications.

  • Functionalities: Remote On/Off, OCP, OVP, and SCP
  • Power Output: 12W
  • Number of Outputs: Two
  • Maximum Current Output: 500mA each
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 12V and -12V
  • Efficiency: 87%
  • Mounting Type: Through-Hole
  • Package/Case: 24-DIP module with 9 leads
  • Operating Temperature Range: -40°C to 65°C
  • Control Features: Enable and Active High
  • Voltage Isolation: 1.6 kV
