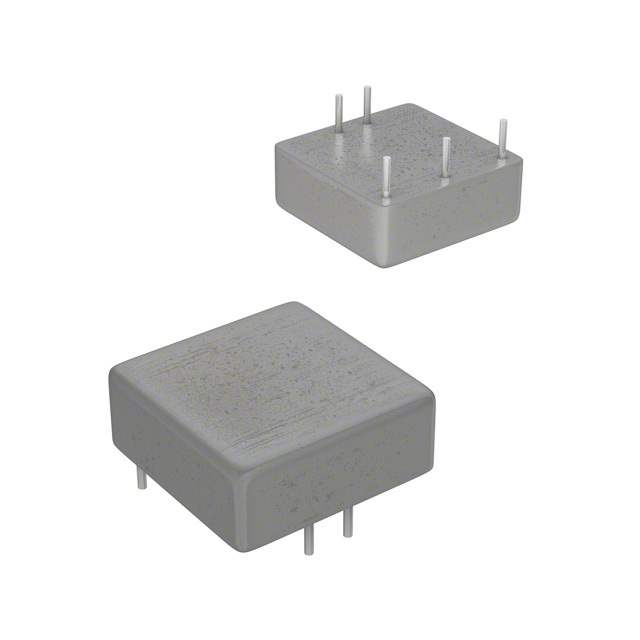

The RP15-2405DAW is an isolated module power supply designed for board mount applications.

• Product: Isolated Module Power Supply
• Features: OCP (Over Current Protection), OVP (Over Voltage Protection), and SCP (Short Circuit Protection)
• Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Application: ITE (Commercial)
• Power Rating: 15W
• Outputs: 5V and -5V
• Voltage Isolation: 1.6 kV
• Maximum Output Current: 1.5A for both outputs
• Input Voltage Range: 9V to 36V
• Efficiency: 85%
• Temperature Range: -40°C to 85°C
• Mounting: Through Hole
• Package: 6-DIP module package with 5 leads
• Manufacturer: Recom Power
• Status: Active
• REACH: Unaffected
• Warning: Contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm
