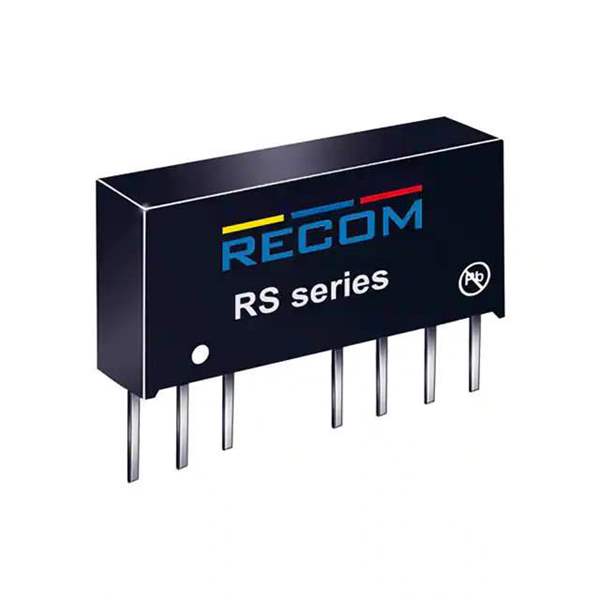

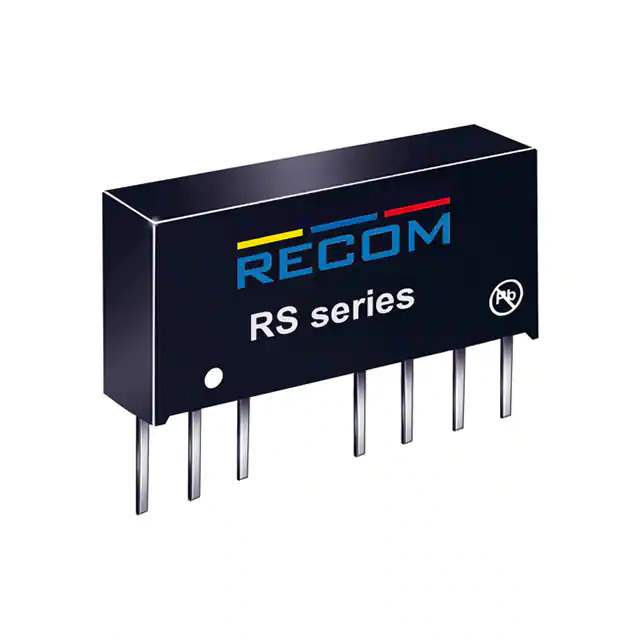

RS-2405D/H2 Real Image
Same model may have multiple batches, images only for reference.

RS-2405D/H2

Part No RS-2405D/H2
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W
Datasheet
RS-2405D/H2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series ECONOLINE RS (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 2 kV
Applications ITE (Commercial), Medical
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features Enable, Active Low
Base Product Number RS-2405
Standard Package 22 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 661151-RS-2405D/H2
Ultra Librarian 3D Model Ultra Librarian RS-2405D/H2 CAD Model

Description

The 661151-RS-2405D/H2 is a power supply module from the ECONOLINE RS series by Recom Power.

  • Series: ECONOLINE RS
  • Type: Isolated Module
  • Power: 2W
  • Size: 0.86" L x 0.36" W x 0.44" H
  • Features: Remote on/off and SCP (short circuit protection)
  • Voltage Input: 18V to 36V
  • Outputs: 5V and -5V
  • Efficiency: 78%
  • Applications: ITE (commercial) and medical devices
  • Voltage Isolation: 2 kV
  • Mounting: Through Hole
  • Package: 8-SIP module package with 7 leads
  • Operating Temperature: -40°C to 85°C
  • Status: Active
  • Compliance: REACH regulations
