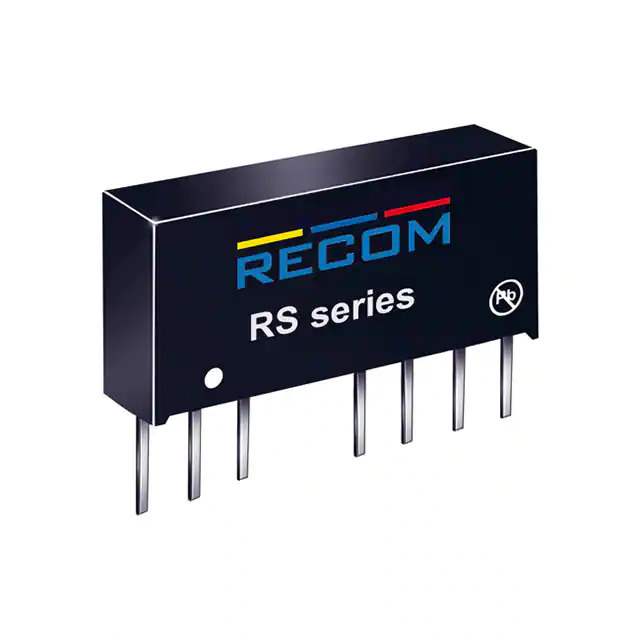

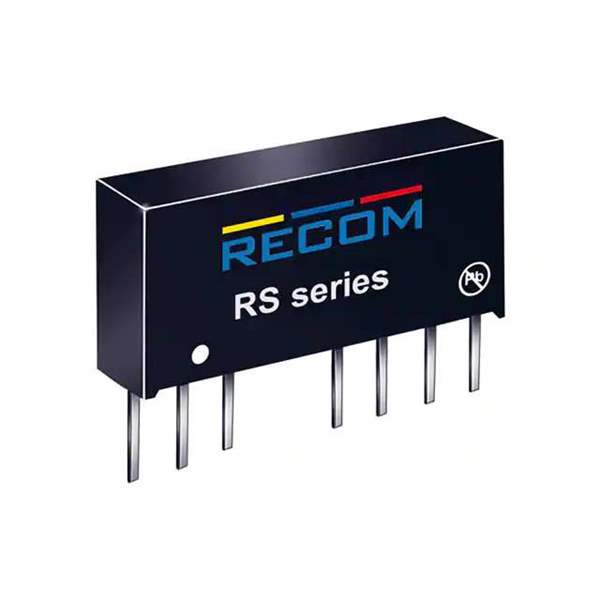

Same model may have multiple batches, images only for reference.

RS-2409S

Name: RS-2409S
Brand: Recom Power
SKU: 661153
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RS-2409S
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 2W
Datasheet	RS-2409S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RS (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	9V
Current - Output (Max)	222mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	81%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features	Enable, Active Low
Base Product Number	RS-2409
Standard Package	22 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	661153-RS-2409S
Ultra Librarian 3D Model	Ultra Librarian RS-2409S CAD Model

Alternative Products

Description

The Recom Power 661153-RS-2409S is an active isolated DC-DC converter module from the ECONOLINE RS (2W) series.

Application: Power supply applications in commercial electronic devices
Features: Remote On/Off and SCP (Short Circuit Protection)
Size: 0.86" L x 0.36" W x 0.44" H
Maximum Output Current: 222mA
Output Voltage: 9V
Operating Temperature: -40°C to 85°C
Mounting Type: Through-Hole
Package: 8-SIP Module
