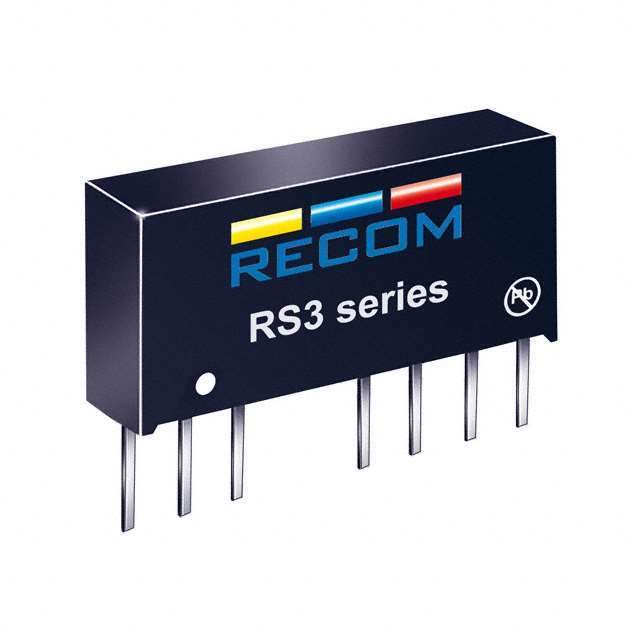

RS3-0515D Real Image
Same model may have multiple batches, images only for reference.

RS3-0515D

Part No RS3-0515D
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W  /  Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 9V Input
Datasheet
RS3-0515D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE RS3 (3W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 71°C
Efficiency 83%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features Enable, Active Low
Base Product Number RS3-0515
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 945-1560-5,RS30515D,RS3-0515D-ND,10004217
Standard Package 22
Win Source Part Number 1166264-RS3-0515D
Ultra Librarian 3D Model Ultra Librarian RS3-0515D CAD Model

Description

The ECONOLINE RS3 (3W) is a high-quality isolated module that is widely used in the electronic industry, manufacturer is unknown.

  • Designed for: Power Supplies
  • Features: Remote On/Off and SCP
  • Package: 22
  • Efficiency: 83%
  • Voltage Isolation: 1 kV
  • Outputs: Two
  • Output Current: 100mA each
  • Voltage Input: 4.5V to 9V
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
  • Mounting Type: Through-Hole
  • Package/Case: 8-SIP Module, 7 Leads
  • Temperature Range: -40°C ~ 71°C
