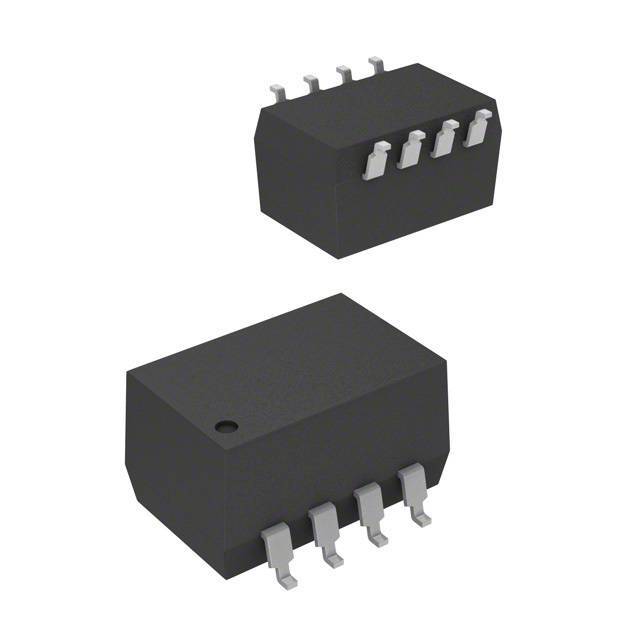

Same model may have multiple batches, images only for reference.
RSS8-0505 Recom Power
Same model may have multiple batches, images only for reference.

RSS8-0505

Part No RSS8-0505
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 05VIN 05VOUT / Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 8-Pin SMD Module Tube
Datasheet
RSS8-0505 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Recom Power
Series ECONOLINE RSS
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 5V
Current - Output (Maximum) 200mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features SCP
Operating Temperature Range -40°C ~ 85°C
Efficiency 78%
Mounting SMD
Package 8-SMD Module
Dimension 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Win Source Part Number 793396-RSS8-0505
Popularity Medium
Supply and Demand Status Limited
Family Name RSS8-0505
Introduction Date December 09, 2008
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian RSS8-0505 CAD Model

Description

The ECONOLINE RSS8-0505 is an isolated module power supply.

  • Power Output: 1W
  • Voltage Isolation: 1kV (1000V)
  • Outputs: 1
  • Voltage Output: 5V
  • Efficiency: 78%
  • Package: 8-SMD module
  • Mounting Style: SMD
  • Input Voltage Range: 4.5V to 5.5V
  • Current Output: 200mA
  • Features: SCP
  • Operating Temperature Range: -40°C to 85°C
  • Series: ECONOLINE RSS
