Same model may have multiple batches, images only for reference.

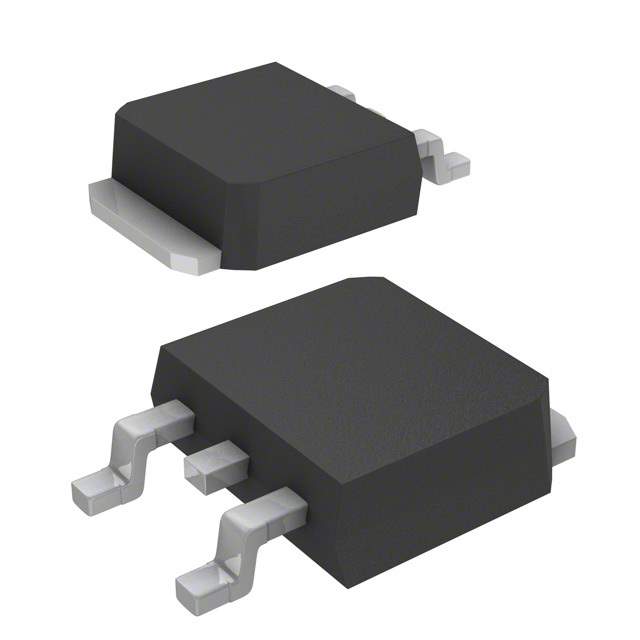

CRD5AS-12B#B00 Real Image
Same model may have multiple batches, images only for reference.

CRD5AS-12B#B00

Part No CRD5AS-12B#B00
Manufacturer Renesas Electronics America
Catalog SCRs - Single
Description THYRISTOR 600V 5A TO-220FL
Datasheet
CRD5AS-12B#B00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Tube/Rail
Status Active
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Max) 800mV
Current - Gate Trigger (Igt) (Max) 100μA
Voltage - On State (Vtm) (Max) 1.8V
Current - On State (It (AV)) (Max) 5A
Current - On State (It (RMS)) (Max) 7.8A
Current - Hold (Ih) (Max) 3mA
Current - Off State (Max) 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 90A @ 60Hz
SCR Type Sensitive Gate
Temperature Range - Operating -40°C to 150°C
Mounting SMD (SMT)
Case / Package MP-3A
Win Source Part Number 1030287-CRD5AS-12B#B00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CRD5AS-12B#B00 CAD Model

Description

The CRD5AS-12B#B00 is a sensitive gate SCR from Renesas Electronics America.

  • Application: Discrete Semiconductor Products
  • Popularity: Medium
  • Voltage Off State: 600V
  • Voltage Gate Trigger: 800mV
  • Current On State: 5A
  • Current Off State: 2mA
  • Non-Rep. Surge: 90A @ 60Hz
  • Operating Temperature: -40°C to 150°C
  • Packaging: Tube/Rail
  • Dimension: MP-3A
