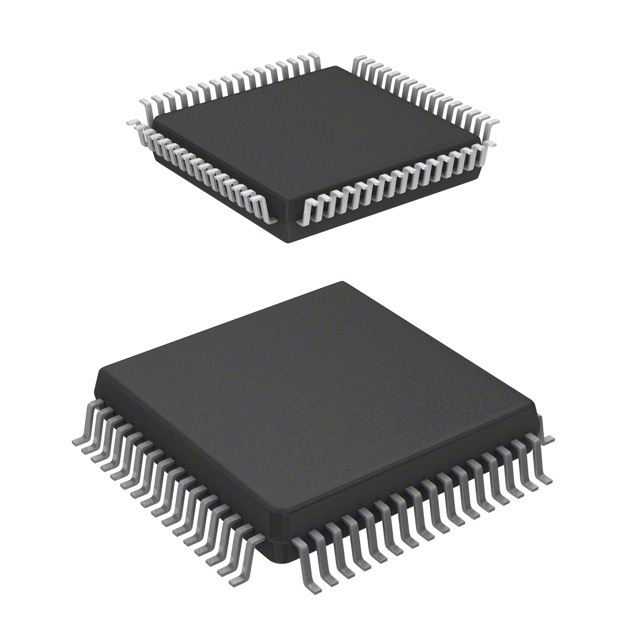

HD64F3694HV
Same model may have multiple batches, images only for reference.

HD64F3694HV

Part No HD64F3694HV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 32KB FLASH 64QFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features H8/300H series Microcontroller IC 16-Bit 20MHz 32KB (32K x 8) FLASH 64-QFP (14x14)
Manufacturer Renesas Electronics America
Series H8® H8/300H Tiny
Package Tray
Part Status Obsolete
Core Processor H8/300H
Core Size 16-Bit
Speed 20MHz
Connectivity I2C, SCI
Peripherals PWM, WDT
Number of I/O 29
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
Supply Voltage 3V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature Range -20°C ~ 75°C (TA)
Mounting Surface Mount
Package 64-BQFP
Case / Package 64-QFP (14x14)
Family Name HD64*3694
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873436-HD64F3694HV
Ultra Librarian 3D Model Ultra Librarian HD64F3694HV CAD Model

Description

The Renesas Electronics America HD64F3694HV is an obsolete integrated circuit (IC) with a supply and demand status of limited.

  • Package: 64-BQFP
  • Mounting: Tray package
  • Operating Temperature: -20°C ~ 75°C (TA)
  • Family: HD64*3694
  • ECCN: EAR99
  • REACH: Unaffected
  • Series: H8/300H
  • Core Size: 16-bit
  • Speed: 20MHz
  • Memory: 32KB (32K x 8) FLASH
  • Package Type: 64-QFP (14x14)
  • Connectivity: I2C, SCI
  • I/O: 29
  • Data Converters: A/D 8x10b
