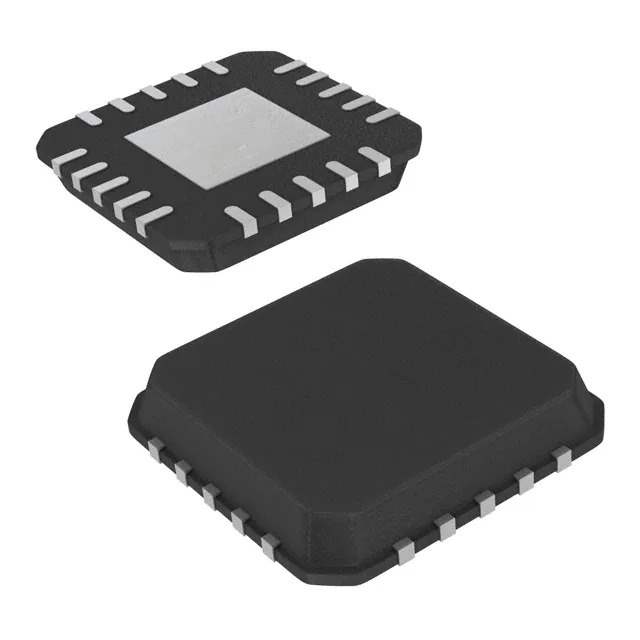

ISL6558IRZ-TK Real Image
Same model may have multiple batches, images only for reference.

ISL6558IRZ-TK

Part No ISL6558IRZ-TK
Manufacturer Renesas Electronics America
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 20QFN
Datasheet
ISL6558IRZ-TK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - DC DC Switching Controllers
Mfr Renesas Electronics America
Package Tape & Reel
Product Status Active
Output Type PWM Signal
Function Step-Down
Output Configuration Positive
Topology Buck
Number of Outputs 4
Output Phases 4
Voltage - Supply (Vcc/Vdd) 4.75V ~ 5.25V
Frequency - Switching 80kHz ~ 1.5MHz
Duty Cycle (Max) 75%
Clock Sync No
Control Features Enable, Frequency Control, Power Good
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 20-VQFN Exposed Pad
Supplier Device Package 20-QFN (5x5)
Base Product Number ISL6558
Standard Package 1,000 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 746366-ISL6558IRZ-TK
Ultra Librarian 3D Model Ultra Librarian ISL6558IRZ-TK CAD Model

Description

The 746366-ISL6558IRZ-TK is a DC-DC switching controller integrated circuit from Renesas Electronics America.

  • Application: power management applications
  • Functionality: step-down
  • Topology: buck
  • Switching Frequency: 80kHz to 1.5MHz
  • Outputs: four
  • Output Configuration: positive output
  • Control Features: enable, frequency control, and power good
  • Synchronous Rectifier: No
  • Serial Interface Capabilities: No
  • Output Phases: four
  • Maximum Duty Cycle: 75%
  • Mounting Type: surface mount
  • Package/Case: 20-VQFN exposed pad
  • Supplier Device Package: 20-QFN (5x5)
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • REACH Regulations: not affected
  • HTSUS Code: 8542.31.0001
  • MSL Level: 2
  • Voltage Supply Range: 4.75V to 5.25V
  • Status: active product
