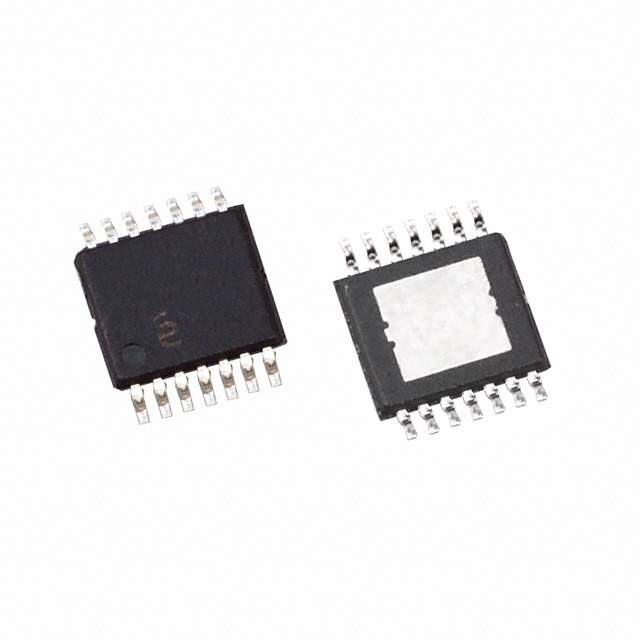

ISL78420AVEZ-T7A Real Image
Same model may have multiple batches, images only for reference.

ISL78420AVEZ-T7A

Part No ISL78420AVEZ-T7A
Manufacturer Renesas Electronics America
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDG 14HTSSOP
Datasheet
ISL78420AVEZ-T7A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 24 Weeks
Features Half-Bridge Gate Driver IC Non-Inverting 14-HTSSOP
Manufacturer Renesas Electronics America
Series Automotive, AEC-Q100
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Case / Package 14-HTSSOP
Family Name ISL78420
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number ISL78420AVEZ-T7ATR, ISL78420AVEZ-T7ADKR, ISL78420AVEZ-T7ACT, -ISL78420AVEZ-T7A
Quantity per package 250
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 875784-ISL78420AVEZ-T7A
Ultra Librarian 3D Model Ultra Librarian ISL78420AVEZ-T7A CAD Model

Description

The ISL78420AVEZ-T7A is a half-bridge gate driver IC non-inverting 14-HTSSOP from Renesas Electronics America that falls under the category of integrated circuits (ICs).

  • Operating Temperature Range: -40°C to 125°C (TA)
  • Package: 14-TSSOP (0.173", 4.40mm Width) exposed pad
  • Supply: Limited
  • Quantity per package: 250
