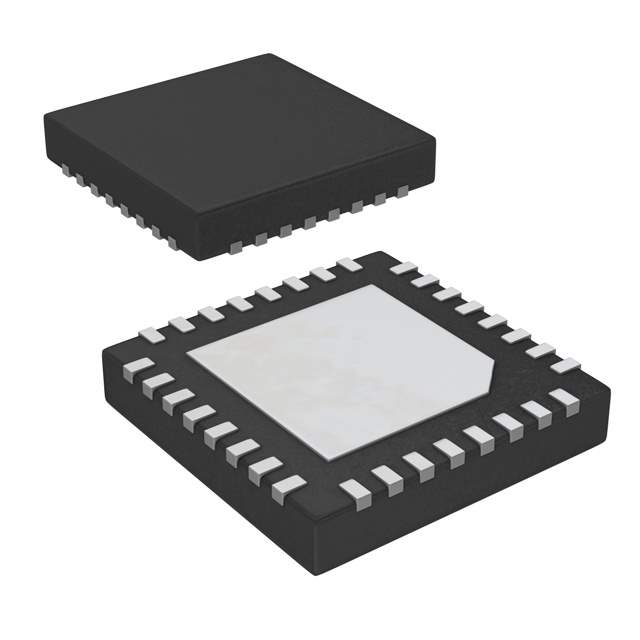

ISL8120IRZ-TK Real Image
Same model may have multiple batches, images only for reference.

ISL8120IRZ-TK

Part No ISL8120IRZ-TK
Manufacturer Renesas Electronics America
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 32QFN
Datasheet
ISL8120IRZ-TK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Renesas Electronics America Inc.
Packaging Reel
Output Type Transistor Driver
Function Step-Down
Output Configuration Positive
Topology Buck
Number of Outputs 2
Output Phases 2
Voltage - Supply (Vcc/Vdd) 3V ~ 5.6V
Frequency - Switching 150kHz ~ 1.5MHz
Duty Cycle (Maximum) 90%
Synchronous Rectifier Yes
Clock Sync Yes
Control Features Current Limit, Enable, Power Good
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Part Number Series ISL8120
Manufacturer Pack Quantity 1,000
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810101-ISL8120IRZ-TK
Ultra Librarian 3D Model Ultra Librarian ISL8120IRZ-TK CAD Model

Description

The Renesas Electronics America Inc. ISL8120IRZ-TK is a transistor driver voltage regulator with two outputs and a voltage supply range of 3V to 5.6V. It has a step-down function and a buck topology with a switching frequency of 150kHz to 1.5MHz. The Renesas Electronics America Inc. regulator is part of the ISL8120 part number series.

  • Outputs: 2
  • Supply Voltage Range: 3V to 5.6V
  • Topology: Buck
  • Switching Frequency: 150kHz to 1.5MHz
  • Supplier Device Package: 32-QFN (5x5)
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 3 (168 Hours)
  • Part Number Series: ISL8120
