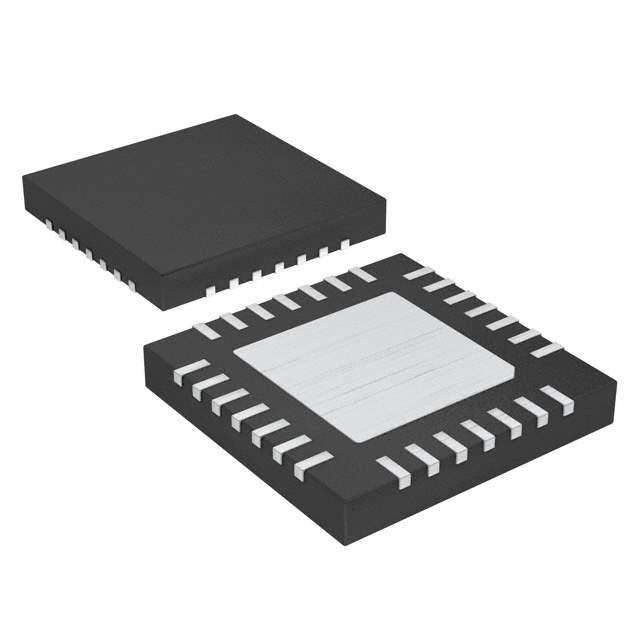

ISL97687IRTZ-T Real Image
Same model may have multiple batches, images only for reference.

ISL97687IRTZ-T

Part No ISL97687IRTZ-T
Manufacturer Renesas Electronics America
Catalog PMIC - LED Drivers
Description IC LED DRIVER CTRLR DIM 28TQFN / 4-Channel LED Driver with Phase Shift Control and 10-Bit Dimming Resolution
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Renesas Electronics America Inc.
Packaging Reel
Type DC DC Controller
Topology Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 4
Voltage - Supply (Min) 9V
Voltage - Supply (Maximum) 32V
Current - Output / Channel 160mA
Frequency 200kHz ~ 1.2MHz
Dimming Analog, PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 105°C
Mounting Style SMD
Manufacturer Package 28-WFQFN Exposed Pad
Supplier Device Package 28-TQFN-EP (5x5)
Part Number Series ISL97687
Manufacturer Pack Quantity 6,000
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811848-ISL97687IRTZ-T
Ultra Librarian 3D Model Ultra Librarian ISL97687IRTZ-T CAD Model

Description

The Renesas Electronics America Inc. DC DC Controller, part number 811848-ISL97687IRTZ-T, is a step-up (boost) topology controller that is ideal for backlight applications.

  • Frequency Range: 200kHz ~ 1.2MHz
  • Output Current per Channel: 160mA
  • Dimming Options: Analog and PWM
  • Voltage Supply: 9V to 32V
  • Package: 28-TQFN-EP (5x5)
  • Operating Temperature Range: -40°C to 105°C
  • Manufacturer Pack Quantity: 6,000
