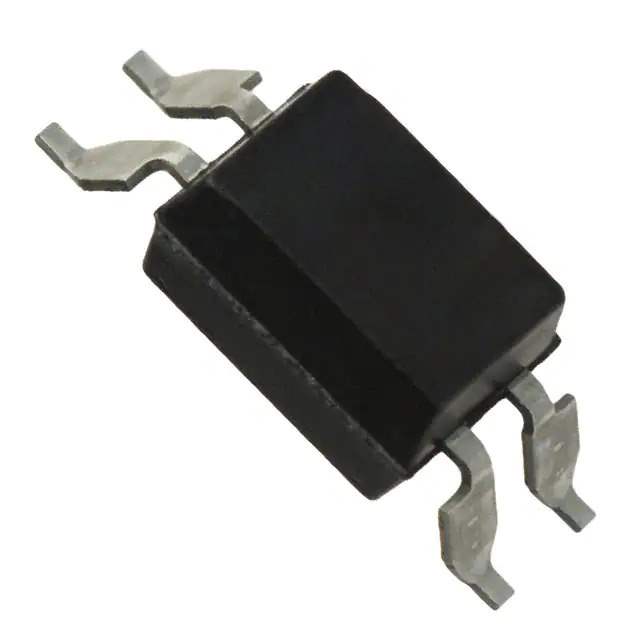

PS2561AL2-1-V-E3-A Real Image
Same model may have multiple batches, images only for reference.

PS2561AL2-1-V-E3-A

Part No PS2561AL2-1-V-E3-A
Manufacturer Renesas Electronics America
Catalog Optoisolators - Transistor, Photovoltaic Output
Description TRANSISTOR OUTPUT OPTOCOUPLER / Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Renesas Electronics America
Series NEPOC
Package Bulk
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 400% @ 5mA
Rise / Fall Time (Typ) 3µs, 5µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 30mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 30 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Standard Package 1,000 pcs
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 280927-PS2561AL2-1-V-E3-A
Ultra Librarian 3D Model Ultra Librarian PS2561AL2-1-V-E3-A CAD Model

Description

The Renesas Electronics America PS2561AL2-1-V-E3-A is an optoisolator that belongs to the NEPOC series.

  • Series: NEPOC
  • Package: Bulk
  • Standard Package Quantity: 1,000 pieces
  • Output Type: Transistor
  • Input Type: DC
  • Maximum Forward Current (If): 30mA
  • Typical Forward Voltage (Vf): 1.2V
  • Rise Time: 3μs
  • Fall Time: 5μs
  • Channel Count: Single
  • Current Transfer Ratio: 50% @ 5mA
  • Isolation Voltage: 5000Vrms
  • Maximum Output Voltage: 70V
  • Mounting Type: Surface Mountable
  • Package: 4-SMD, gull wing
  • Temperature Range: -55°C to 100°C
  • ECCN: EAR99
