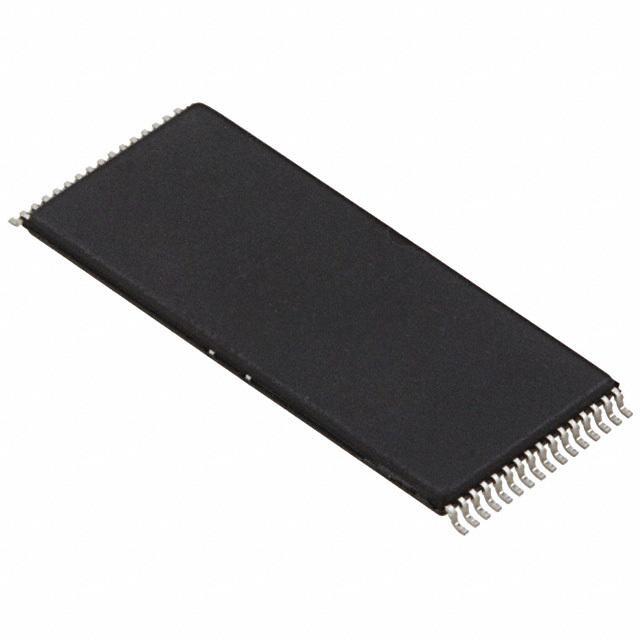

The R1LV0108ESF-7SR#B0 is a 1Mbit Static RAM (SRAM) device from Renesas Electronics. This SRAM is designed for applications requiring fast access times and low power consumption.

Applications

• Data Buffering: Used as a temporary storage buffer for data processing.
• Cache Memory: Employed in cache memory systems for fast data access.
• Industrial Control Systems: Suitable for data storage in industrial control equipment.
• Communication Equipment: Utilized in communication devices for temporary storage.
• Medical Devices: Used in medical devices for storing critical data.

Features

• 1Mbit Density: Provides 1,048,576 bits of storage capacity.
• Fast Access Time: Features a fast access time, typically around 70ns.
• Low Power Consumption: Designed for low power consumption to extend battery life in portable devices.
• Single 3V Supply: Operates from a single 3V power supply.
• SOP Package: Available in a small outline package (SOP) for space-saving designs.

Benefits

• Fast Data Access: Enables quick data retrieval, improving system performance.
• Low Power Operation: Reduces power consumption, extending battery life in portable applications.
• High Density: Provides a high storage capacity in a small package.
• Reliable Storage: Offers reliable data storage for critical applications.
• Simplified System Design: Single 3V supply simplifies system design.

Additional Details

The R1LV0108ESF-7SR#B0 SRAM is organized as 128K x 8 bits. It uses CMOS technology for low power consumption. The operating temperature range is typically industrial grade, making it suitable for a wide range of environments. It is commonly used in embedded systems where fast and reliable data storage is essential. Consult the datasheet for precise timing characteristics and power consumption details.
