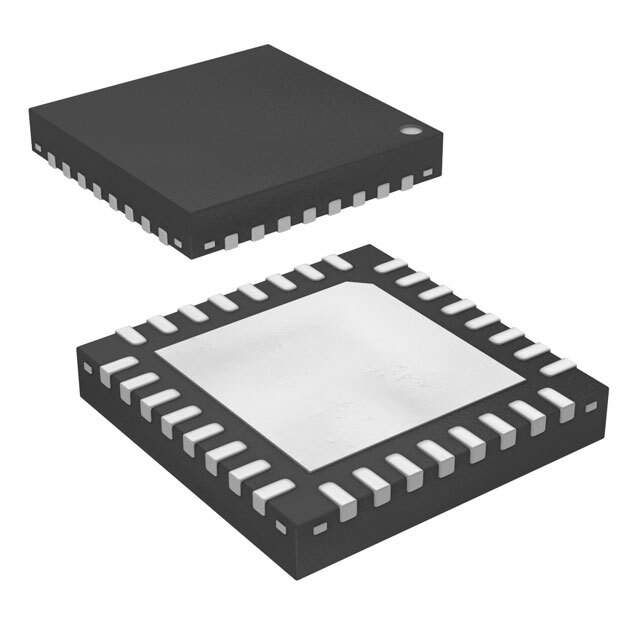

R5F100BAANA#U0 Real Image
Same model may have multiple batches, images only for reference.

R5F100BAANA#U0

Part No R5F100BAANA#U0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 32HWQFN / RL78 series Microcontroller IC 16-Bit 32MHz 16KB (16K x 8) FLASH 32-HWQFN (5x5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RL78/G13
Package Tray
Product Status Obsolete
Core Processor RL78
Core Size 16-Bit
Speed 32MHz
Connectivity CSI, I2C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 22
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 2K x 8
Supply Voltage - Operating 1.6V ~ 5.5V
Data Converters A/D 8x8/10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 32-WFQFN Exposed Pad
Supplier Device Package 32-HWQFN (5x5)
Base Product Number R5F100
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names R5F100BAANAU0
Standard Package 490
Win Source Part Number 1087285-R5F100BAANA#U0
Ultra Librarian 3D Model Ultra Librarian R5F100BAANA#U0 CAD Model

Description

The R5F100BAANA#U0 is a microcontroller from Renesas.

  • Series: RL78/G13
  • Core Processor: 16-Bit
  • Maximum Operating Speed: 32MHz
  • Connectivity: CSI, I2C, LINbus, UART/USART
  • I/O Channels: 22
  • Program Memory: 16KB
  • Package: 32-WFQFN Exposed Pad
  • Operating Temperature: -40°C to 85°C
  • Status: Obsolete
