Same model may have multiple batches, images only for reference.

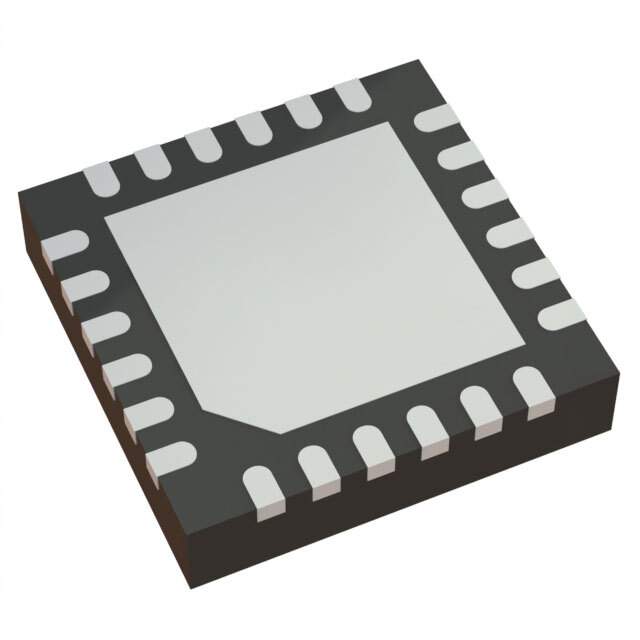

RC22504A000GNK#BB0 Real Image
Same model may have multiple batches, images only for reference.

RC22504A000GNK#BB0

Part No RC22504A000GNK#BB0
Manufacturer Renesas Electronics America
Catalog Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description IC FREQ SYNTH 24VFQFPN / Frequency Synthesizer IC 180MHz, 1GHz 1 24-WFQFN Exposed Pad
Datasheet
RC22504A000GNK#BB0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Mfr Renesas Electronics America Inc
Series FemtoClock®
Package Tray
Type Frequency Synthesizer
PLL Yes
Input Clock, Crystal
Output CML, HCSL, LVCMOS, LVDS, LVPECL
Number of Circuits 1
Frequency - Max 180MHz, 1GHz
Divider/Multiplier Yes/No
Voltage - Supply 1.71V ~ 1.89V, 3.465V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-VFQFPN (4x4)
Standard Package 490
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349979-RC22504A000GNK#BB0
Ultra Librarian 3D Model Ultra Librarian RC22504A000GNK#BB0 CAD Model

Description

The RC22504A000GNK#BB0 is a frequency synthesizer from Renesas Electronics America Inc.

  • Series: FemtoClock™
  • Application: Clock/Timing
  • Frequency - Max: 180MHz and 1GHz
  • Inputs: Clock, Crystal
  • PLL: Yes
  • Divider/Multiplier: Yes
  • Supply Voltage: 1.71V to 1.89V and 3.465V
  • Package: 24-WFQFN Exposed Pad
  • Operating Temperature: -40°C to 85°C
