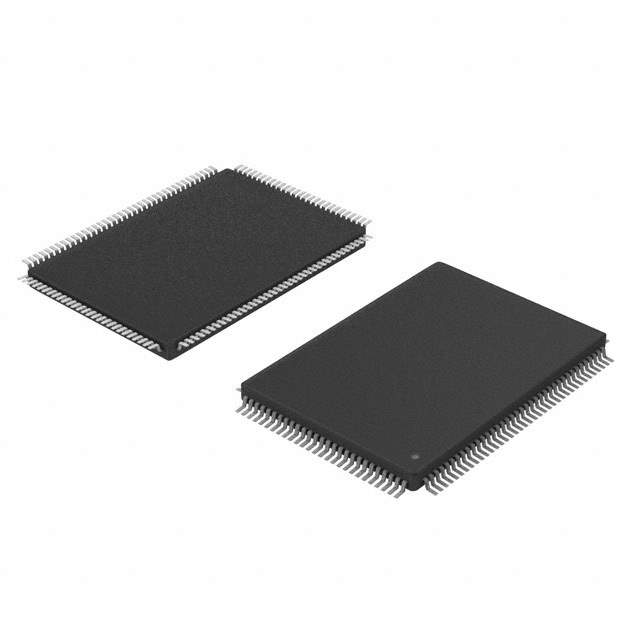

UPD78F1174AGF-GAT-AX Real Image
Same model may have multiple batches, images only for reference.

UPD78F1174AGF-GAT-AX

Part No UPD78F1174AGF-GAT-AX
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 128LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Renesas Electronics America
Packaging Tray
Core Processor 78K/0R
Data Bus Width 16-Bit
Speed 20MHz
Connectivity 3-Wire SIO, EBI/EMI, I2C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
The number of I/O 111
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
Date RAM Size 8K x 8
Supply Voltage 1.8V ~ 5.5V
Data Converters A/D 16x10b; D/A 2x8b
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 128-LQFP
Manufacturer Pack Quantity 72
MSL Level 3 (168 Hours)
Win Source Part Number 712825-UPD78F1174AGF-GAT-AX
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPD78F1174AGF-GAT-AX CAD Model

Description

The UPD78F1174AGF-GAT-AX is a microcontroller unit (MCU) from Renesas Electronics America.

  • CPU Core: 8-bit 78K/0R
  • Maximum Operating Frequency: 20 MHz
  • Package: 128-LQFP
  • Supply and Demand: Limited
  • Manufacturer Homepage: Renesas Electronics America
  • Win Source Part Number: 712825-UPD78F1174AGF-GAT-AX
  • Data Bus Width: 16-bit
  • I/Os: 111
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Program Memory Size: 128KB (128K x 8)
  • Program Memory Type: FLASH
  • A/D: 16x10b
  • D/A: 2x8b
  • Supply Voltage: 1.8V to 5.5V
  • Operating Temperature: -40°C to 85°C
  • Data RAM Size: 8K x 8
  • Packaging: Tray
  • MSL Level: 3 (168 hours)
  • Manufacturer Pack Quantity: 72
