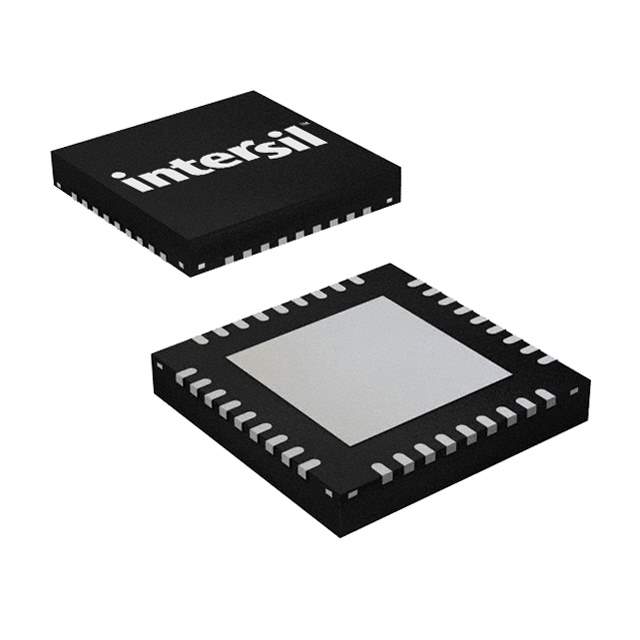

ZL6105ALAF Real Image
Same model may have multiple batches, images only for reference.

ZL6105ALAF

Part No ZL6105ALAF
Manufacturer Renesas Electronics America
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK PMBUS 36QFN / Digital DC/DC Controller with Drivers and Auto Compensation
Datasheet
ZL6105ALAF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Renesas Electronics America Inc.
Packaging Tube
Output Type Transistor Driver
Function Step-Down
Output Configuration Positive
Topology Buck
Number of Outputs 1
Output Phases 1
Voltage - Supply (Vcc/Vdd) 3V ~ 5V
Frequency - Switching 200kHz ~ 1.4MHz
Duty Cycle (Maximum) 95%
Synchronous Rectifier Yes
Clock Sync Yes
Serial Interfaces I2C, PMBus, SMBus
Control Features Current Limit, Enable, Power Good, Soft Start, Tracking
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 36-VFQFN Exposed Pad
Supplier Device Package 36-QFN (6x6)
Part Number Series ZL6105
Manufacturer Pack Quantity 50
MSL Level 2 (1 Year)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808133-ZL6105ALAF
Ultra Librarian 3D Model Ultra Librarian ZL6105ALAF CAD Model

Description

The Renesas Electronics America Inc. ZL6105ALAF is a step-down transistor driver with a buck topology.

  • Switching Frequency: 200kHz to 1.4MHz
  • Features: Current Limit, Enable, Power Good, Soft Start, Tracking
  • Outputs: 1
  • Output Configuration: Positive
  • Synchronous Rectifier: Yes
  • Serial Interface: I2C, PMBus, SMBus
  • Output Phase: Single
  • Clock Sync: Yes
  • Operating Temperature: -40°C to 85°C
  • Voltage Supply: 3V to 5V
  • Series: ZL6105
  • Manufacturer Pack Quantity: 50
