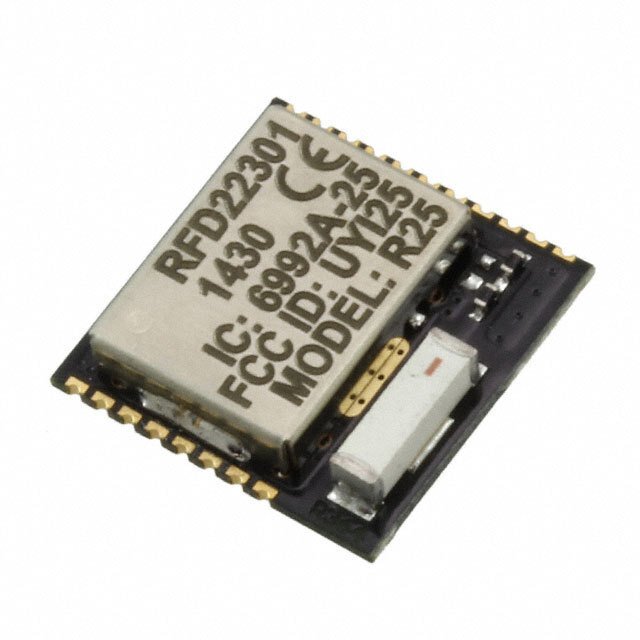

RFD22301 RF Digital Corporation
Same model may have multiple batches, images only for reference.

RFD22301

Part No RFD22301
Manufacturer RF Digital Corporation
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP ANT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer RF Digital Corporation
Packaging Tray
Part Status Obsolete (End Of Life)
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0
Frequency 2.4GHz
Data Rate 8Mbps
Power - Output 4dBm (Maximum)
Sensitivity -93dBm
Serial Interfaces SPI, UART
Antenna Type Integrated, Chip
Supply Voltage (V) 2.1V ~ 3.6V
Current - Receiving 12mA
Current - Transmitting 12mA
Mounting Style SMD
Manufacturer Package 19-SMD Module
Manufacturer Pack Quantity 90
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804253-RFD22301
Ultra Librarian 3D Model Ultra Librarian RFD22301 CAD Model

Description

This part is manufactured by RF Digital Corporation and is not cross-referenced with alternative parts.

  • Win Source Part Number: 804253-RFD22301
  • Bluetooth Version: 2.4GHz v4.0
  • Data Rate: 8Mbps
  • Antenna Type: Integrated, chip
  • Power - Output: 4dBm (Maximum)
  • Sensitivity: -93dBm
