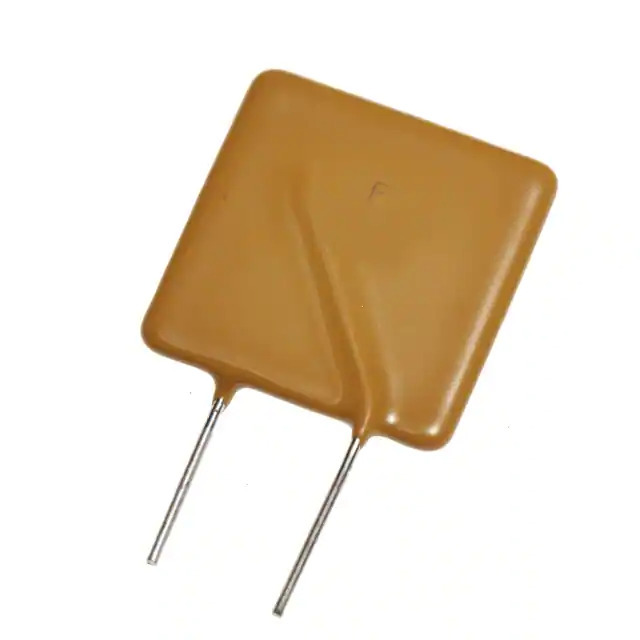

Same model may have multiple batches, images only for reference.

FRV005-240F

Name: FRV005-240F
Brand: RFE/Fuzetec
SKU: 1361719
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FRV005-240F
Manufacturer	RFE/Fuzetec
Catalog	PTC Resettable Fuses
Description	RESETTABLE FUSE - PPTC RADIAL LE / PTC Resettable Fuse 240V (265V Int) 50 mA Ih Through Hole Radial, Disc
Datasheet	FRV005-240F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	RFE/Fuzetec
Series	FRV
Package	Bulk
Product Status	Active
Type	-
Voltage - Max	240V (265V Int)
Current - Hold (Ih) (Max)	50 mA
Current - Trip (It)	120 mA
Current - Max	1 A
Time to Trip	15 s
Resistance - Initial (Ri) (Min)	18.5 Ohms
Resistance - Post Trip (R1) (Max)	65 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.327" Dia (8.30mm)
Height - Seated (Max)	0.421" (10.70mm)
Thickness (Max)	-
Lead Spacing	0.201" (5.10mm)
Approval Agency	cUL, TUV, UL
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361719-FRV005-240F
Ultra Librarian 3D Model	Ultra Librarian FRV005-240F CAD Model

Alternative Products

Description

The FRV005-240F is a circuit protection PTC resettable fuse manufactured by RFE/Fuzetec.

Manufacturer: RFE/Fuzetec
Product Name: FRV005-240F
Series: FRV
Package: Bulk
Package/Case: Radial, Disc
Mounting Type: Through-Hole
Operating Temperature: -40°C to 85°C
Maximum Current: 1 A
Maximum Voltage: 240V (265V Int)
Current Hold (Ih): 50 mA
Current Trip (It): 120 mA
Time to Trip: 15 seconds
Initial Resistance (Ri): 18.5 Ohms
Post-Trip Resistance (R1): 65 Ohms
Approvals: cUL, TUV, UL
