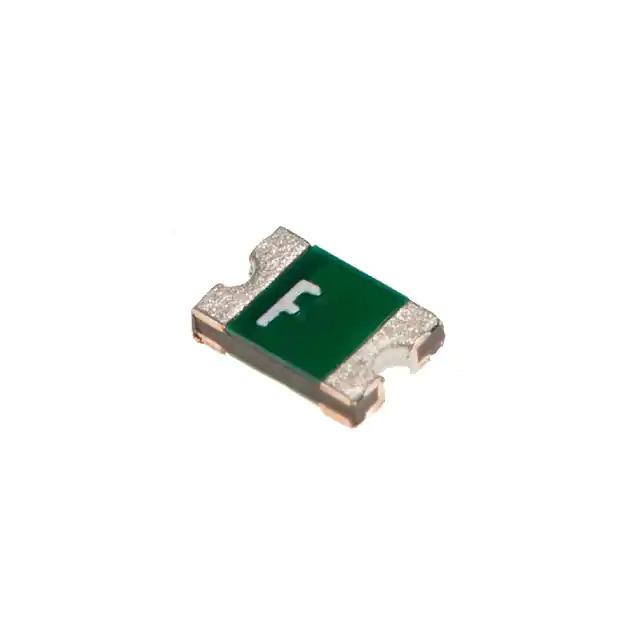

FSMD010-24-0805-R RFE/Fuzetec
Same model may have multiple batches, images only for reference.

FSMD010-24-0805-R

Part No FSMD010-24-0805-R
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - SMD, 0805 SIZE / PTC Resettable Fuse 24V 100 mA Ih Surface Mount 0805 (2012 Metric), Concave
Datasheet
FSMD010-24-0805-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FSMD0805
Package Tape & Reel
Product Status Active
Type -
Voltage - Max 24V
Current - Hold (Ih) (Max) 100 mA
Current - Trip (It) 300 mA
Current - Max 100 A
Time to Trip 1.5 s
Resistance - Initial (Ri) (Min) 700 mOhms
Resistance - Post Trip (R1) (Max) 6 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), Concave
Size / Dimension 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) -
Thickness (Max) 0.039" (1.00mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361629-FSMD010-24-0805-R
Ultra Librarian 3D Model Ultra Librarian FSMD010-24-0805-R CAD Model

Description

The FSMD010-24-0805-R is a surface mount PTC resettable fuse from RFE/Fuzetec.

  • Series: FSMD0805
  • Application: Circuit protection
  • Temperature Range: -40°C to 85°C
  • Package Size: 0805 (2012 Metric), concave
  • Dimensions: 0.085" L x 0.053" W (2.15mm x 1.35mm)
  • Thickness: 0.039" (1.00mm) max
  • Maximum Current Rating: 100A
  • Maximum Voltage Rating: 24V
  • Trip Current: 300mA
  • Time to Trip: 1.5s
  • Initial Resistance: 700mOhms
  • Post-Trip Resistance: 6 Ohms
  • Approvals: cUL, TUV, and UL
