Same model may have multiple batches, images only for reference.

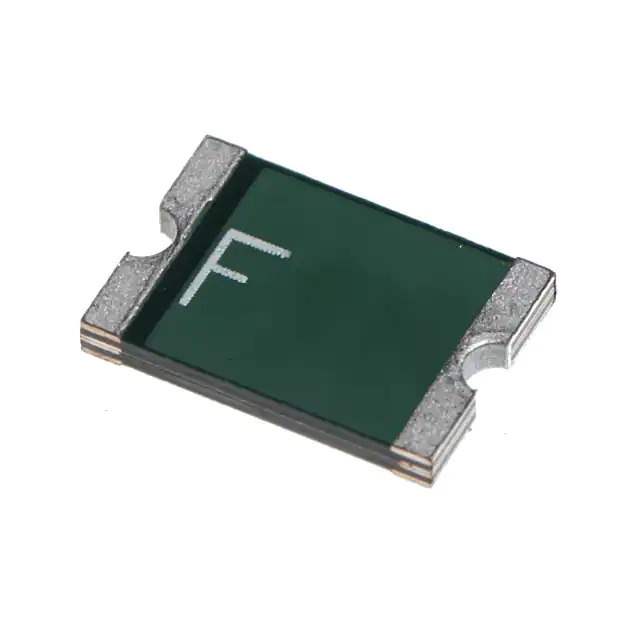

FSMD100-2920-R

Name: FSMD100-2920-R
Brand: RFE/Fuzetec
SKU: 133494
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FSMD100-2920-R
Manufacturer	RFE/Fuzetec
Catalog	PTC Resettable Fuses
Description	RESETTABLE FUSE - SMD, 2920 SIZE
Datasheet	FSMD100-2920-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	RFE/Fuzetec
Series	FSMD2920
Package	Tape & Reel
Product Status	Active
Voltage - Max	33V
Current - Hold (Ih) (Max)	1.1 A
Current - Trip (It)	2.2 A
Current - Max	100 A
Time to Trip	500 ms
Resistance - Initial (Ri) (Min)	90 mOhms
Resistance - Post Trip (R1) (Max)	410 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	2920 (7351 Metric), Concave
Size / Dimension	0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max)	0.039" (1.00mm)
Approval Agency	cUL, TUV, UL
Standard Package	100 pcs
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	133494-FSMD100-2920-R
Ultra Librarian 3D Model	Ultra Librarian FSMD100-2920-R CAD Model

Alternative Products

Description

The FSMD2920 PTC Resettable Fuse is a circuit protection component designed for use in electronic devices.

Size: 0.290" L x 0.202" W (7.36mm x 5.12mm)
Maximum Thickness: 0.039" (1.00mm)
Maximum Voltage: 33V
Maximum Current: 100A
Current Hold (Ih): 1.1A
Current Trip (It): 2.2A
Time to Trip: 500ms
Resistance Initial (Ri): 90 mOhms
Temperature Range: -40°C to 85°C
Approvals: cUL, TUV, and UL
