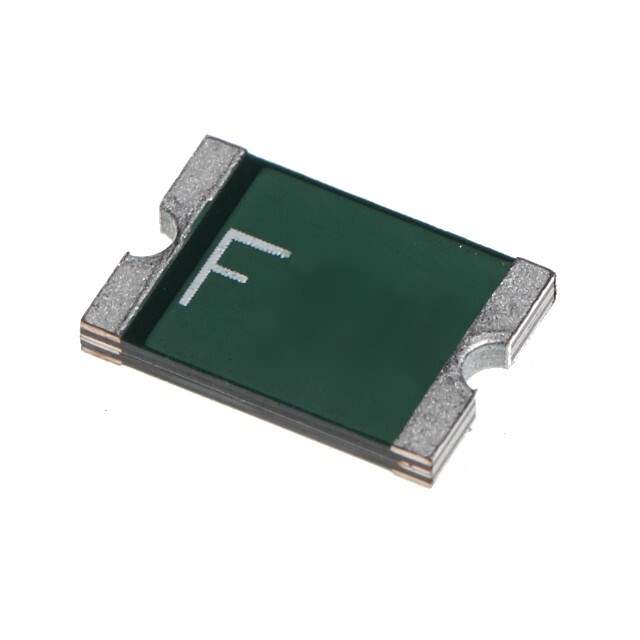

Same model may have multiple batches, images only for reference.

FSMD185-2920-R

Name: FSMD185-2920-R
Brand: RFE/Fuzetec
SKU: 133505
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FSMD185-2920-R
Manufacturer	RFE/Fuzetec
Catalog	PTC Resettable Fuses
Description	RESETTABLE FUSE - SMD, 2920 SIZE
Datasheet	FSMD185-2920-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	RFE/Fuzetec
Series	FSMD2920
Package	Tape & Reel
Product Status	Active
Voltage - Max	33V
Current - Hold (Ih) (Max)	1.85 A
Current - Trip (It)	3.7 A
Current - Max	100 A
Time to Trip	2.5 s
Resistance - Initial (Ri) (Min)	40 mOhms
Resistance - Post Trip (R1) (Max)	150 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	2920 (7351 Metric), Concave
Size / Dimension	0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max)	0.035" (0.90mm)
Approval Agency	cUL, TUV, UL
Standard Package	50 pcs
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	133505-FSMD185-2920-R
Ultra Librarian 3D Model	Ultra Librarian FSMD185-2920-R CAD Model

Alternative Products

Description

The RFE/Fuzetec 133505-FSMD185-2920-R is a surface mount PTC resettable fuse. It is part of the FSMD2920 series and comes in a tape and reel package.

Size: 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness: 0.035" (0.90mm)
Maximum Voltage: 33V
Maximum Current: 100A
Trip Current: 3.7A
Time to Trip: 2.5 seconds
Operating Temperature: -40°C to 85°C
Initial Resistance: 40 mOhms
Post-Trip Resistance: 150 mOhms
Approvals: cUL, TUV, and UL
