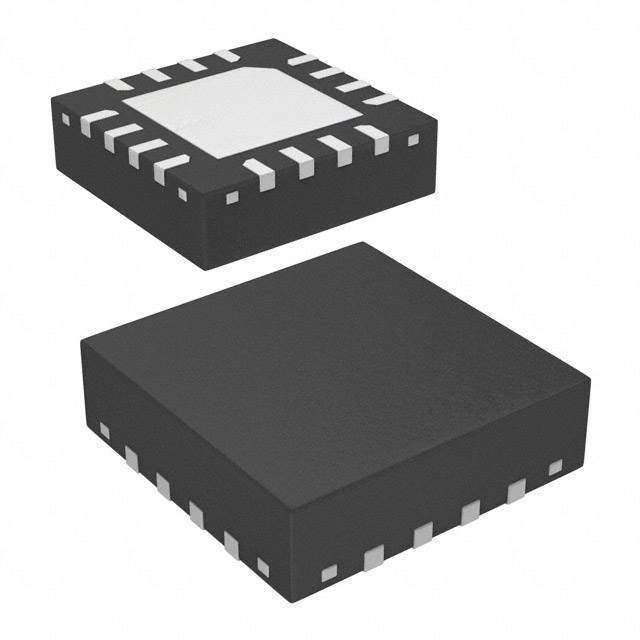

The RT2702GQW is a highly efficient, low-power consumption LED backlight driver IC from Richtek USA Inc. It is designed to drive multiple LEDs in series for LCD backlight applications, providing stable and adjustable brightness control.

Applications:

• LCD Backlights: Used in LCD panels for notebooks, monitors, and televisions.
• Portable Devices: Implemented in smartphones, tablets, and portable media players for screen illumination.
• Automotive Displays: Employed in instrument clusters, infotainment systems, and navigation screens.
• Industrial Displays: Utilized in industrial control panels, HMI devices, and point-of-sale (POS) systems.
• General Lighting: Applied in LED-based lighting solutions where efficient and controlled light output is required.

Features:

• High Efficiency: Maximizes power conversion to minimize energy consumption.
• PWM Dimming Control: Allows precise adjustment of LED brightness through Pulse Width Modulation.
• Built-in Overvoltage Protection (OVP): Safeguards LEDs from damage due to excessive voltage.
• Short Circuit Protection (SCP): Protects the driver IC and LEDs from short circuit conditions.
• Under Voltage Lockout (UVLO): Ensures stable operation by preventing the IC from functioning under low voltage conditions.
• Small Package: Available in a compact package for space-constrained applications.

Benefits:

• Extended Battery Life: Reduces power consumption in portable devices.
• Precise Brightness Control: Enables accurate adjustment of backlight intensity.
• Enhanced Reliability: Protects LEDs and the driver IC from potential damage.
• Stable Performance: Ensures consistent operation across varying input voltage conditions.
• Compact Design: Facilitates integration into small form-factor devices.

Specifications:

The RT2702GQW typically operates from an input voltage range of 2.5V to 5.5V and can drive multiple LEDs in series with a total forward voltage up to 36V. The switching frequency is typically set to 1MHz. The device incorporates PWM dimming control for adjusting brightness and includes built-in protection features such as overvoltage protection (OVP), short circuit protection (SCP), and undervoltage lockout (UVLO). It is available in a WQFN package.

This LED backlight driver offers high efficiency, adjustable brightness control, and comprehensive protection features in a compact package. It is an ideal choice for applications requiring efficient and reliable LED driving.
