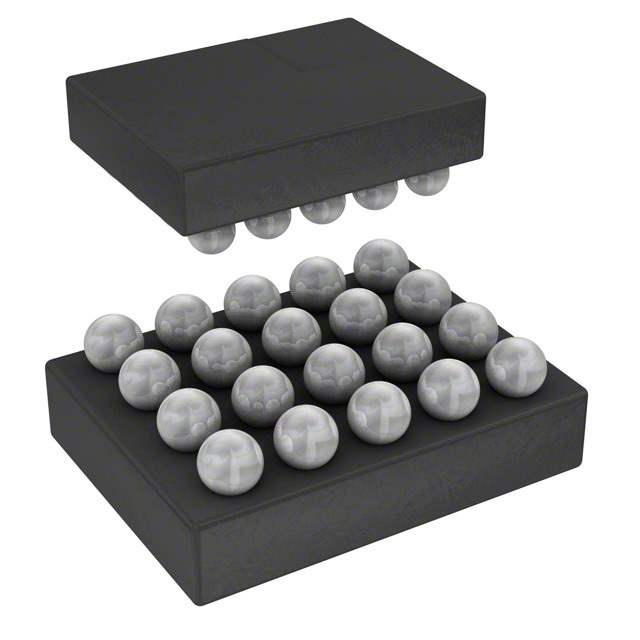

RT8555WSC Real Image
Same model may have multiple batches, images only for reference.

RT8555WSC

Part No RT8555WSC
Manufacturer Richtek USA Inc.
Catalog PMIC - LED Drivers
Description IC LED DRV RGLTR PWM 20WLCSP
Datasheet
RT8555WSC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Richtek USA Inc.
Package Tape & Reel
Product Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Voltage - Supply (Min) 2.7V
Voltage - Supply (Max) 24V
Voltage - Output 36V
Current - Output / Channel 35mA
Frequency 300kHz ~ 2MHz
Dimming Analog, PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 20-UFBGA, WLCSP
Supplier Device Package 20-WLCSP (1.65x2.05)
Base Product Number RT8555
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 711928-RT8555WSC
Ultra Librarian 3D Model Ultra Librarian RT8555WSC CAD Model

Description

The RT8555WSC is a high-performance LED driver designed for power management applications.

  • Category: integrated circuits (ICs) - power management (PMIC) - LED drivers
  • Application: backlight
  • Topology: step-up (boost)
  • Voltage Output: 36V
  • Current Output: 35mA per channel
  • Dimming Options: analog and PWM
  • Input Voltage Range: 2.7V to 24V
  • Mounting: surface mountable
  • Package: 20-UFBGA, WLCSP
